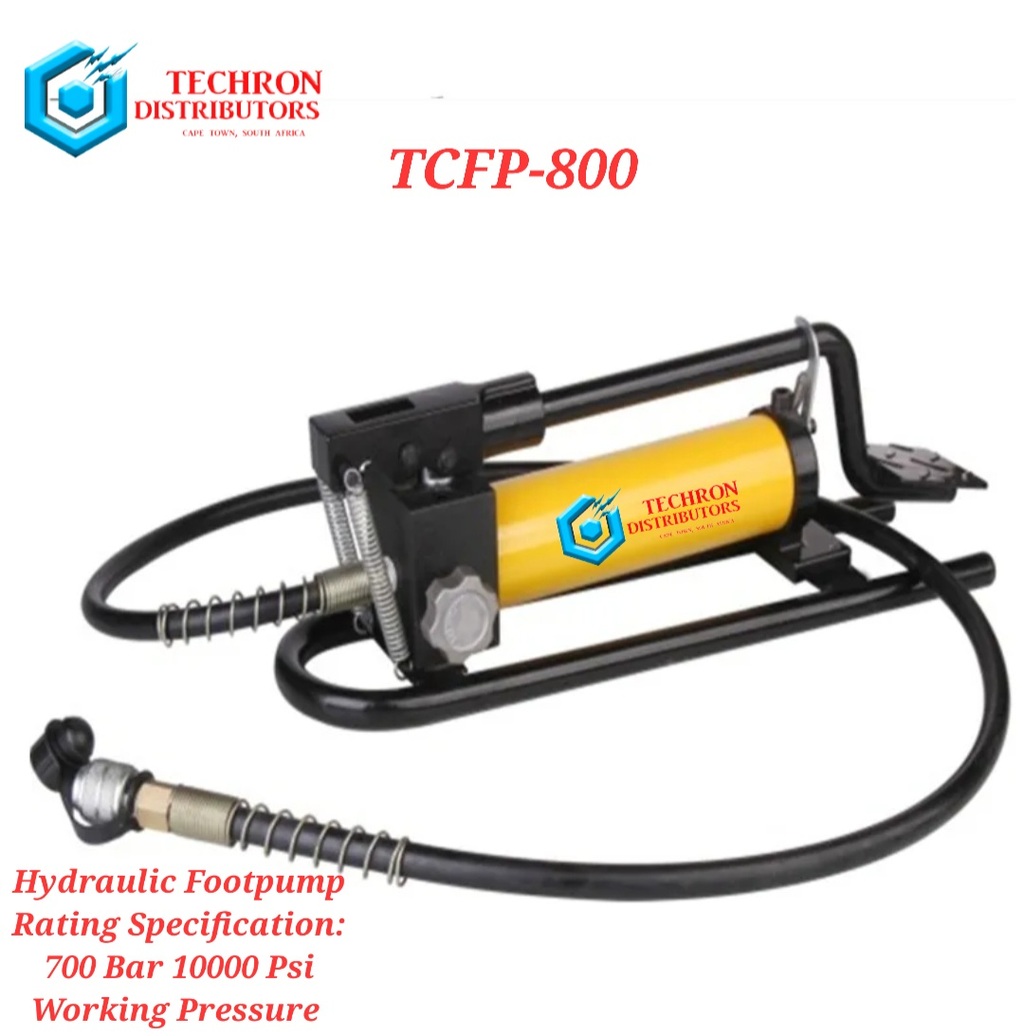

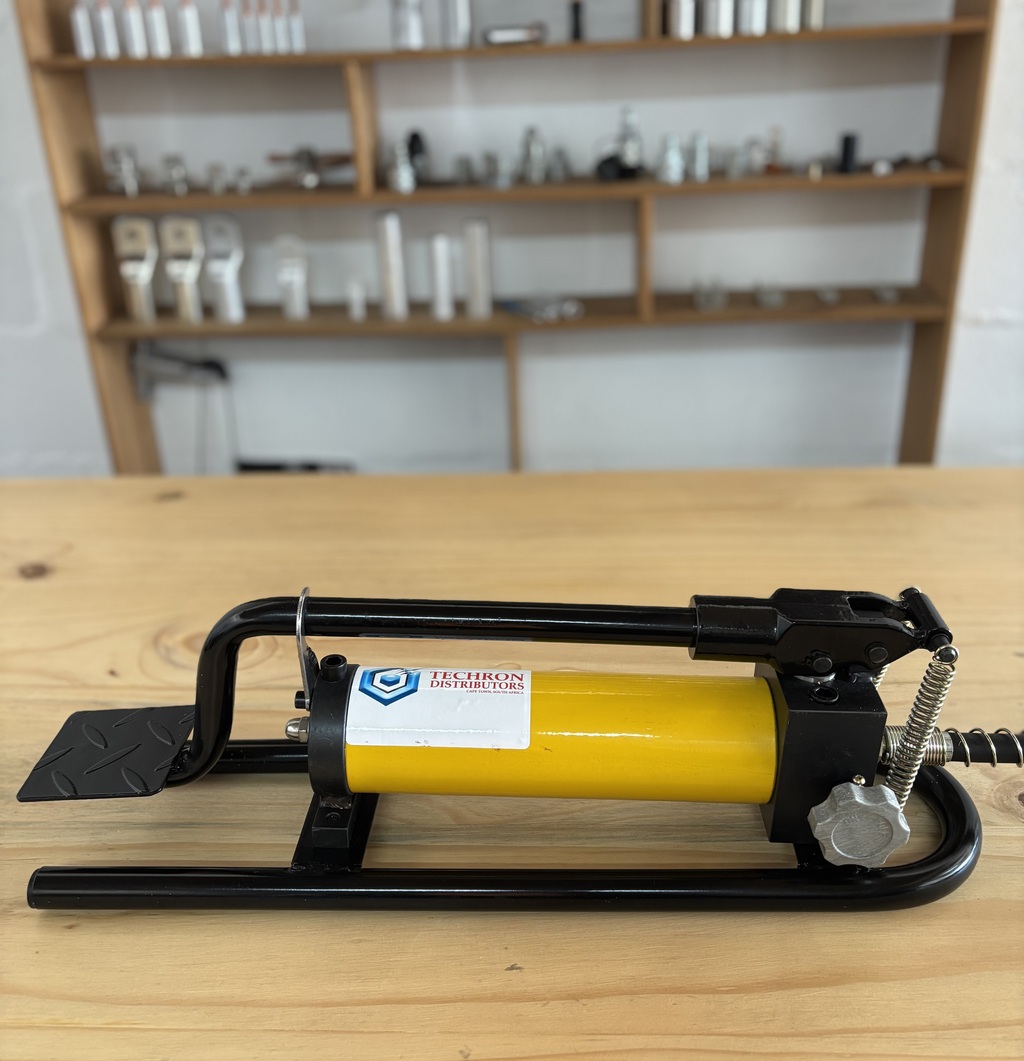

Hydraulic Foot Operated Pumps
Welcome to our products display page.

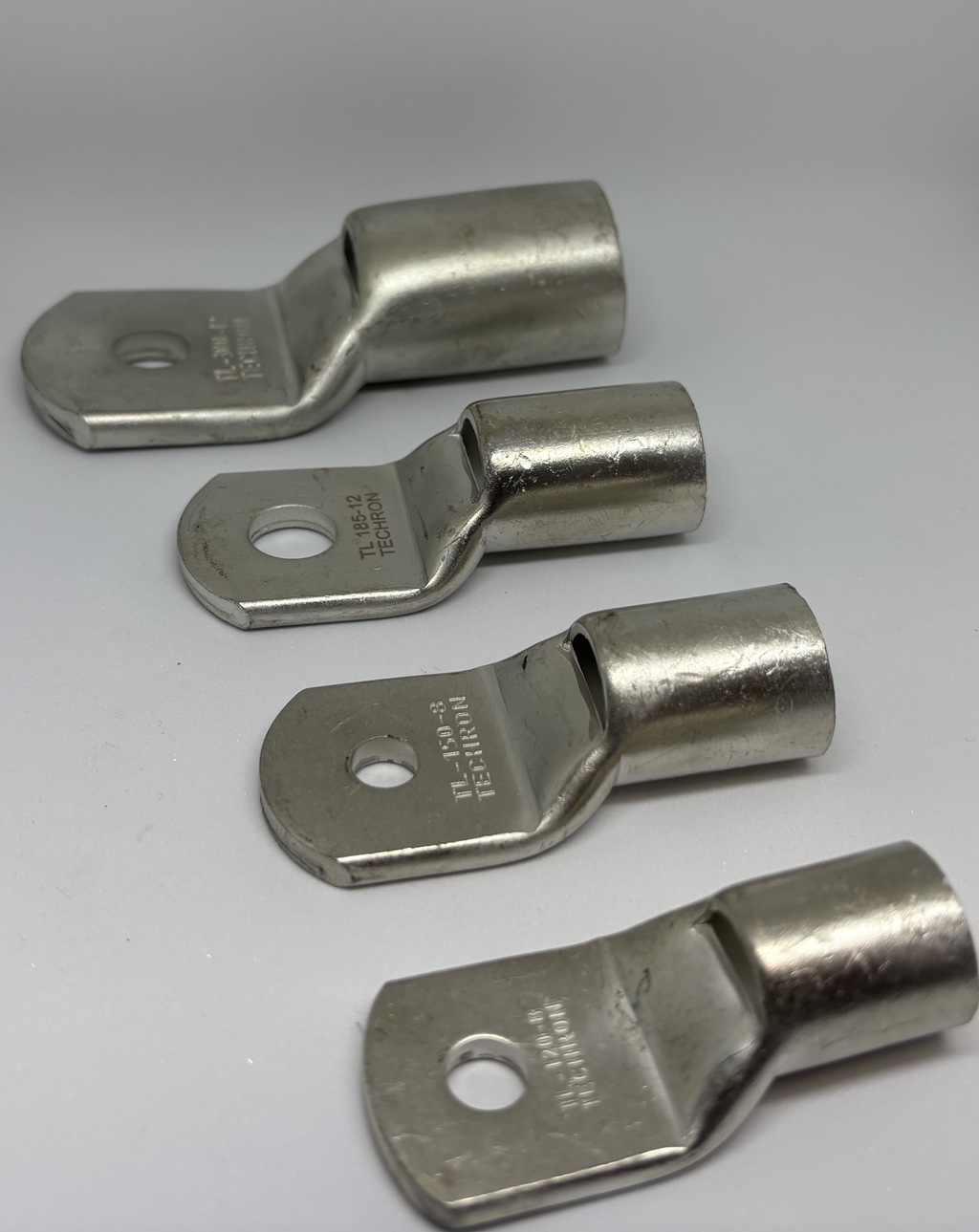

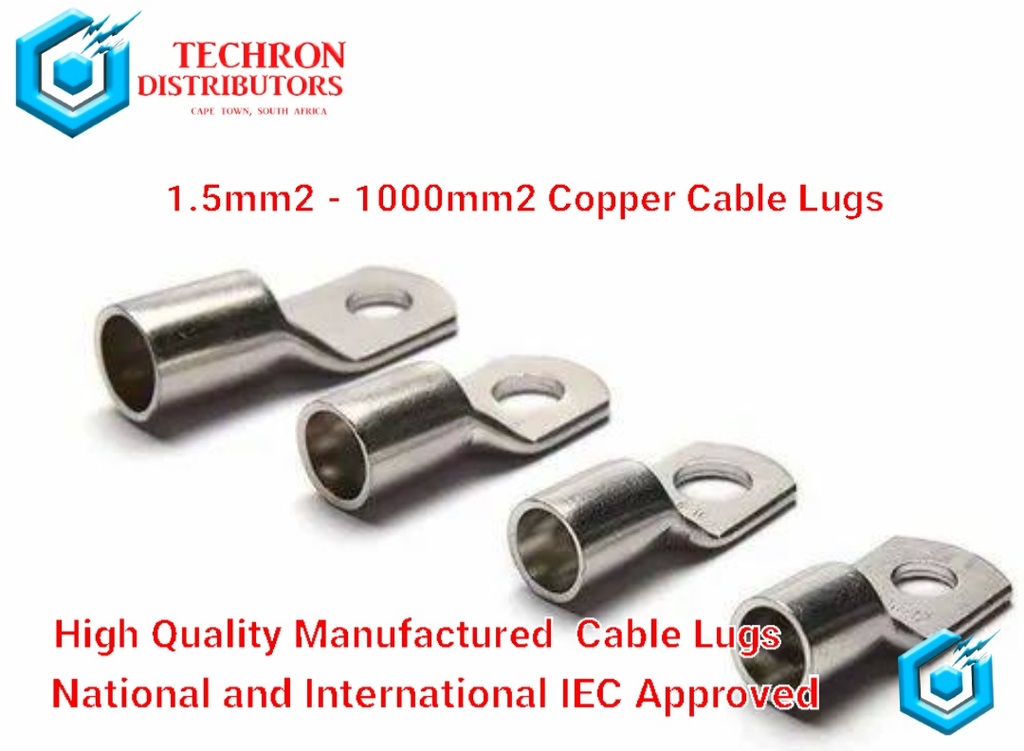

Copper Tin Plated Lugs type tested to SANS IEC
61238-1 Standard
Sizes : 1.5mm2 to 1000mm2
Hole Sizes : Complete Range
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection

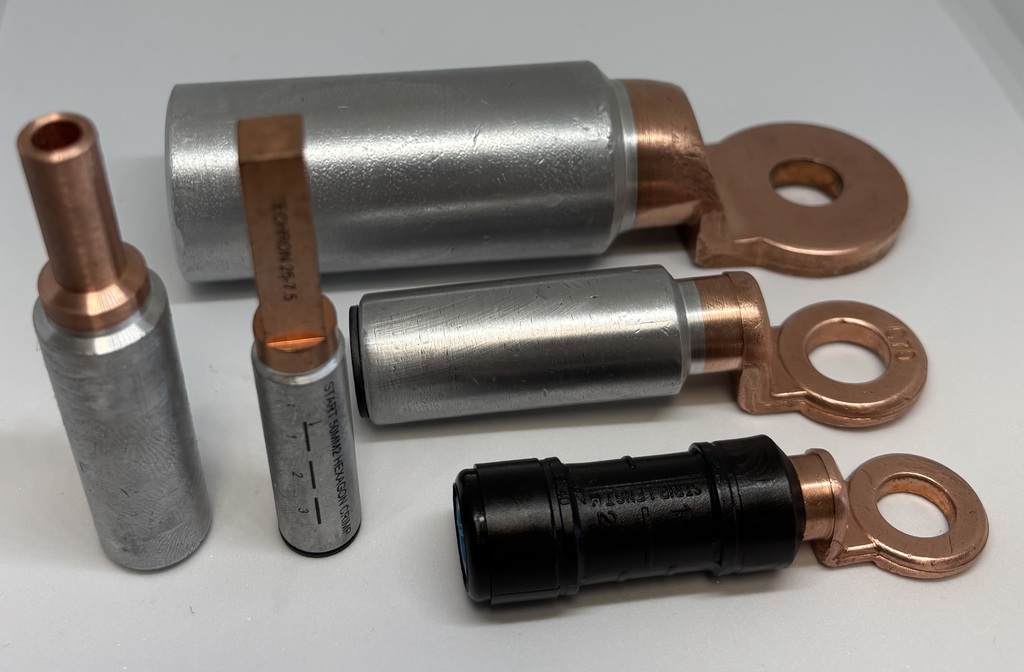

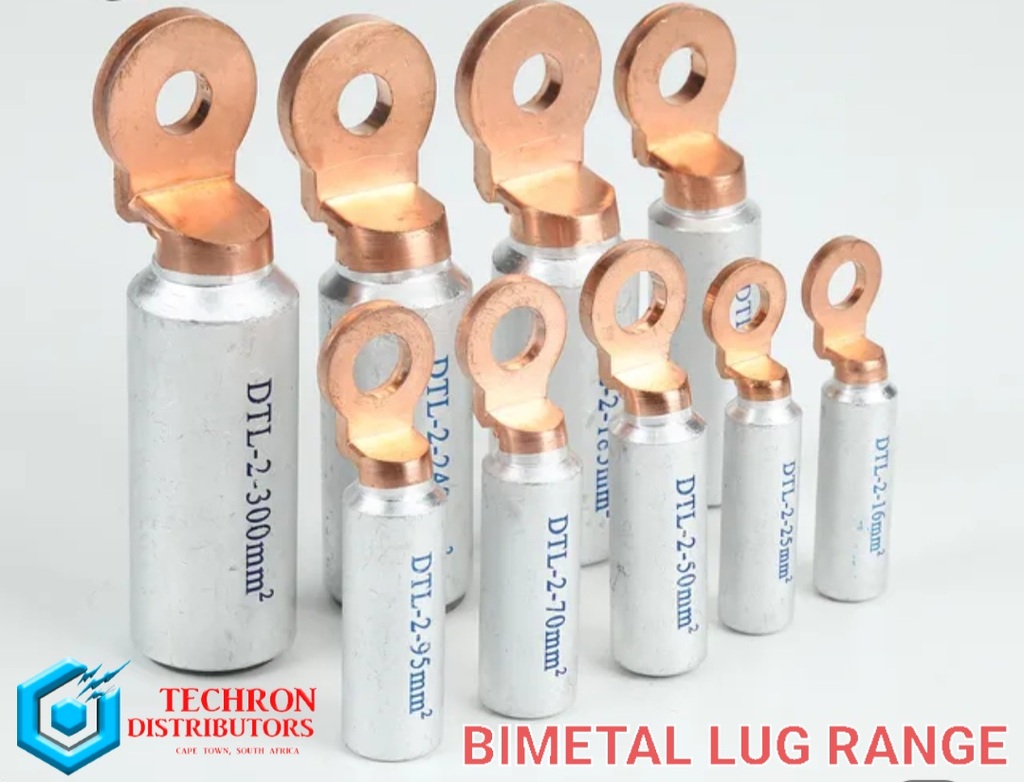

Bimetal Lugs
Sizes : 16mm2 to 300mm2
Hole Sizes : Blank 10mm,12mm
Bimetal Lugs manufactured from high grade materials are friction welded which bonds the copper to aluminium causing a strong durable joint. They are suitable for terminating aluminium conductors to copper busbar.
Bimetal Pin Lugs
Sizes : 16mm2 to 120mm2
Pin Sizes : 6mm , 8mm Diameter
( These pin lugs are used to terminate aluminium conductors to copper pins for tight space applications like circuit breakers )
ABC Pre-Insulated Bimetal Lugs
Sizes : 16mm2 to 150mm2
Hole Sizes : 10mm , 12mm
( ABC lugs are used for terminating Aerial Bundle Conductors to copper busbar applications )

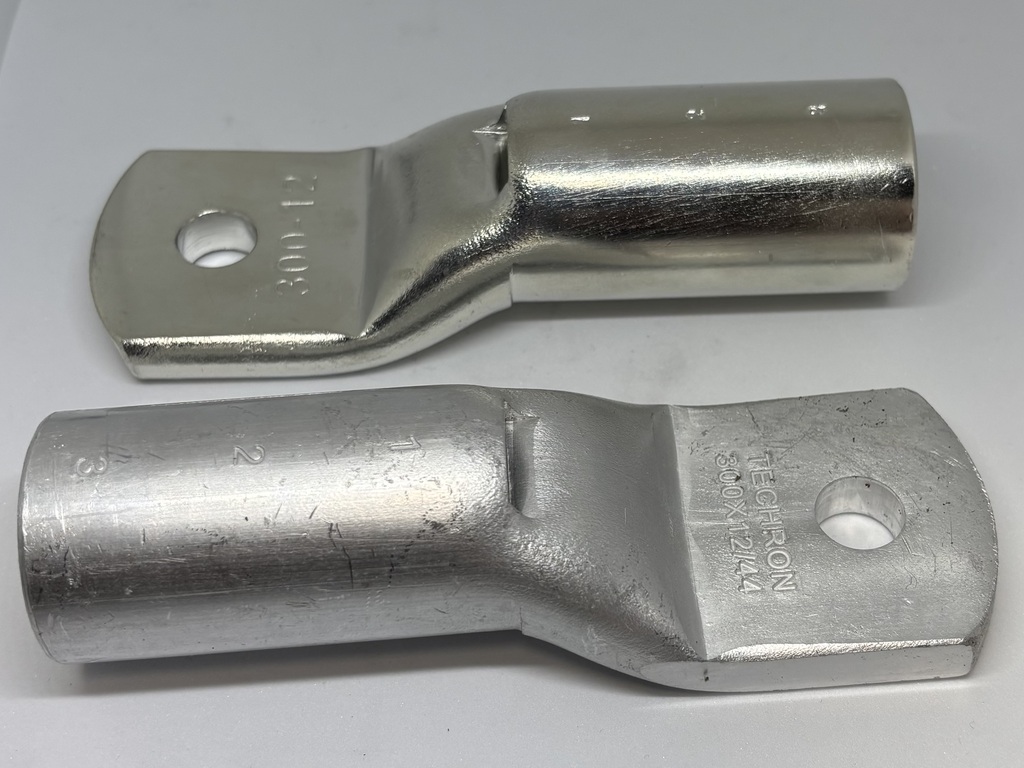

Aluminium Lugs Offered in 4 Core Sector and Round Barrel Cable Entry
Sizes : 25mm2 to 300mm2
Hole Sizes : 10mm,12mm, 16mm
Special Sizes offered on Request
Manufactured from high grade aluminium and chemically cleaned and etched for durable corrosive protection
Application : Aluminium lugs are primarily used for aluminium to aluminium applications

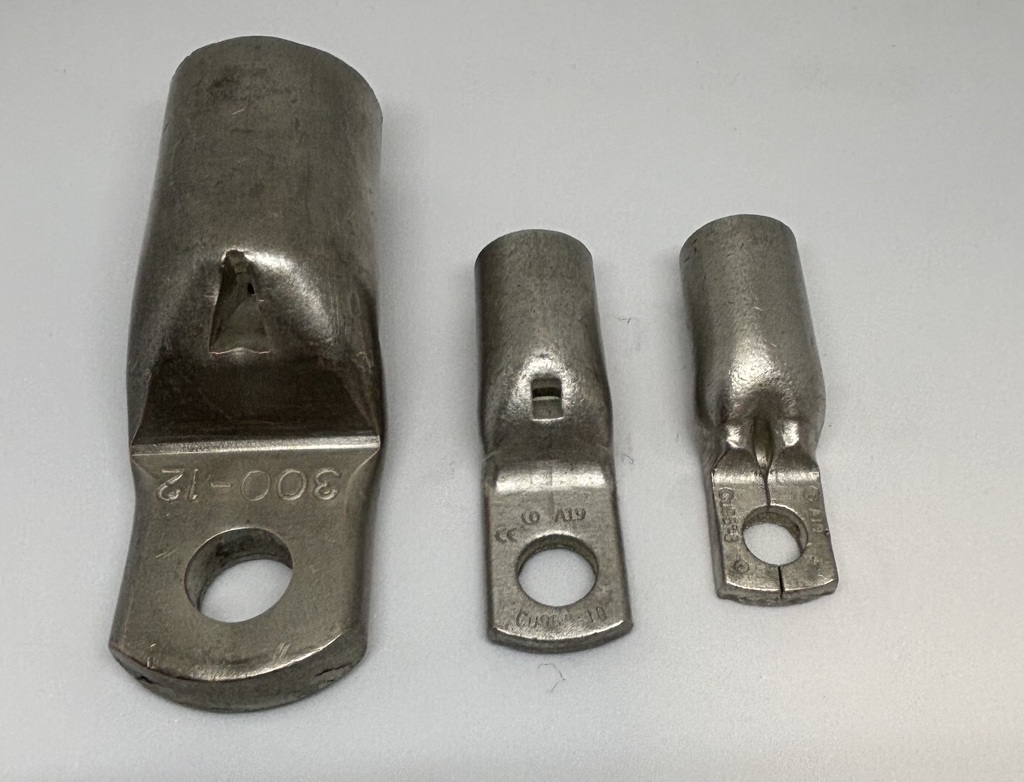

Copper Tin Plated Narrow Palm Lugs type tested to SANS IEC
61238-1 Standard
Sizes : 25mm2 to 300mm2
Hole Sizes: 8mm,10mm,12mm
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection
Application : Used for terminating copper conductors to tight spaces example circuit breakers

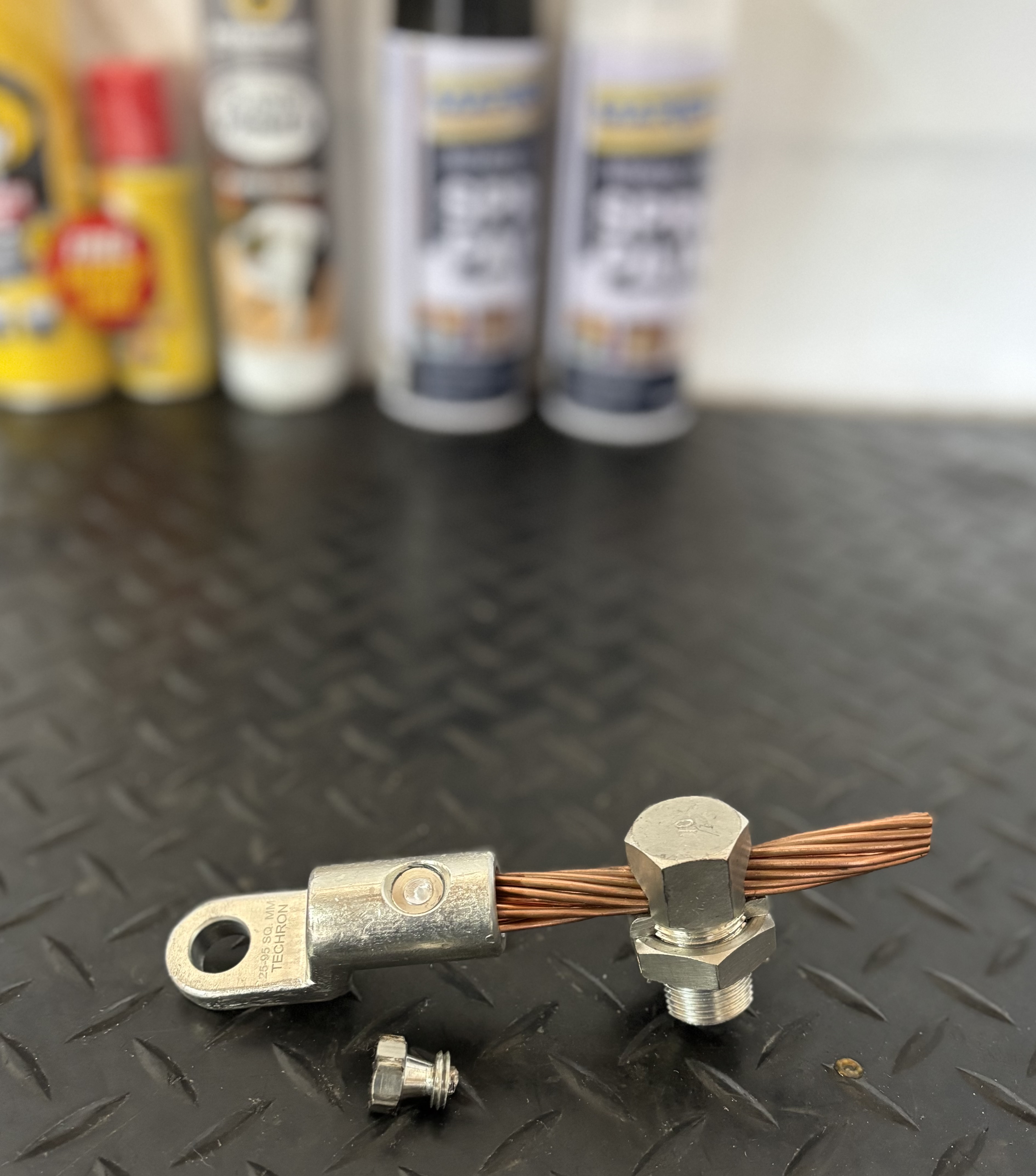

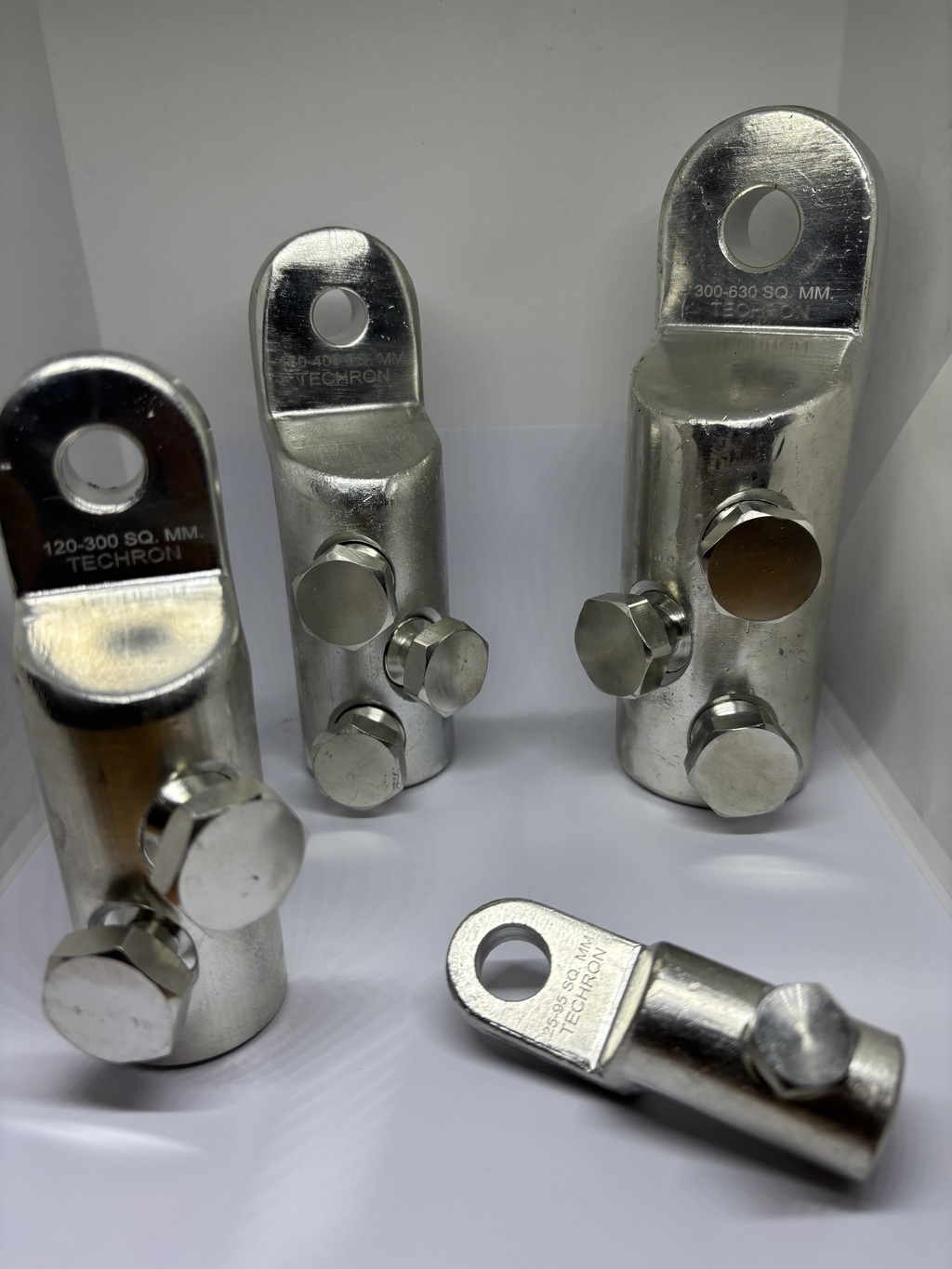

Torque shear lugs consist of a high grade tin plated aluminium lug body with shear bolts. With only four sizes available in the range, a single torque shear can accommodate several conductor sizes. They are designed for the perfect fit in low or medium voltage cable up to 42kV. Each torque shear lug has factory applied grease for protection against moisture and oxidation. Once the bolts are tightened the heads are shared of and termination is complete

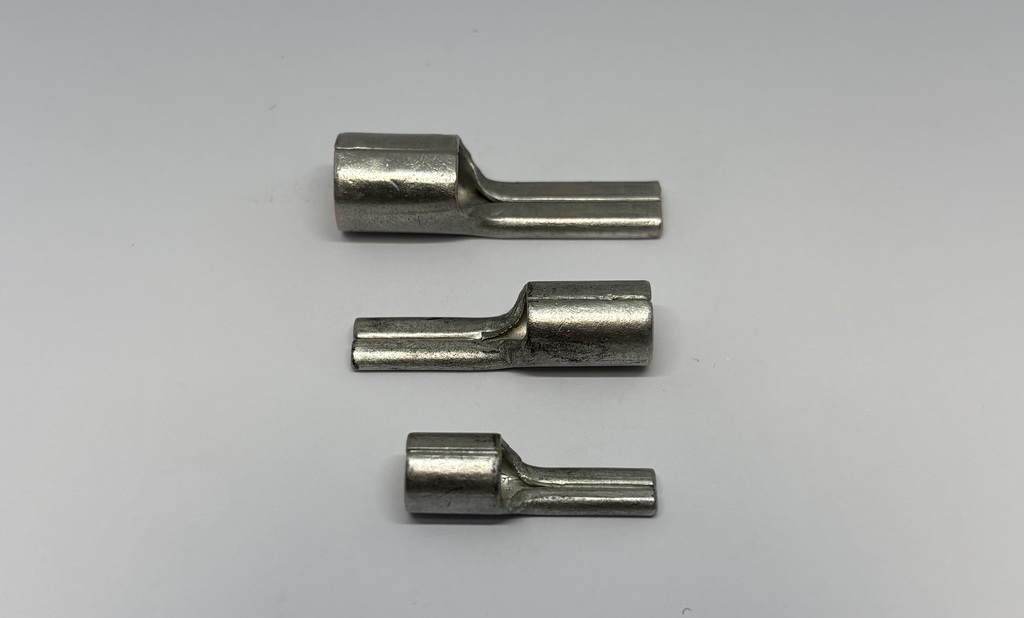

Copper Tin Plated Pin Lugs type tested to SANS IEC
61238-1 Standard
Sizes : 10mm2 to 95mm2
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection
Application : Used for terminating copper conductors to tight spaces example circuit breakers

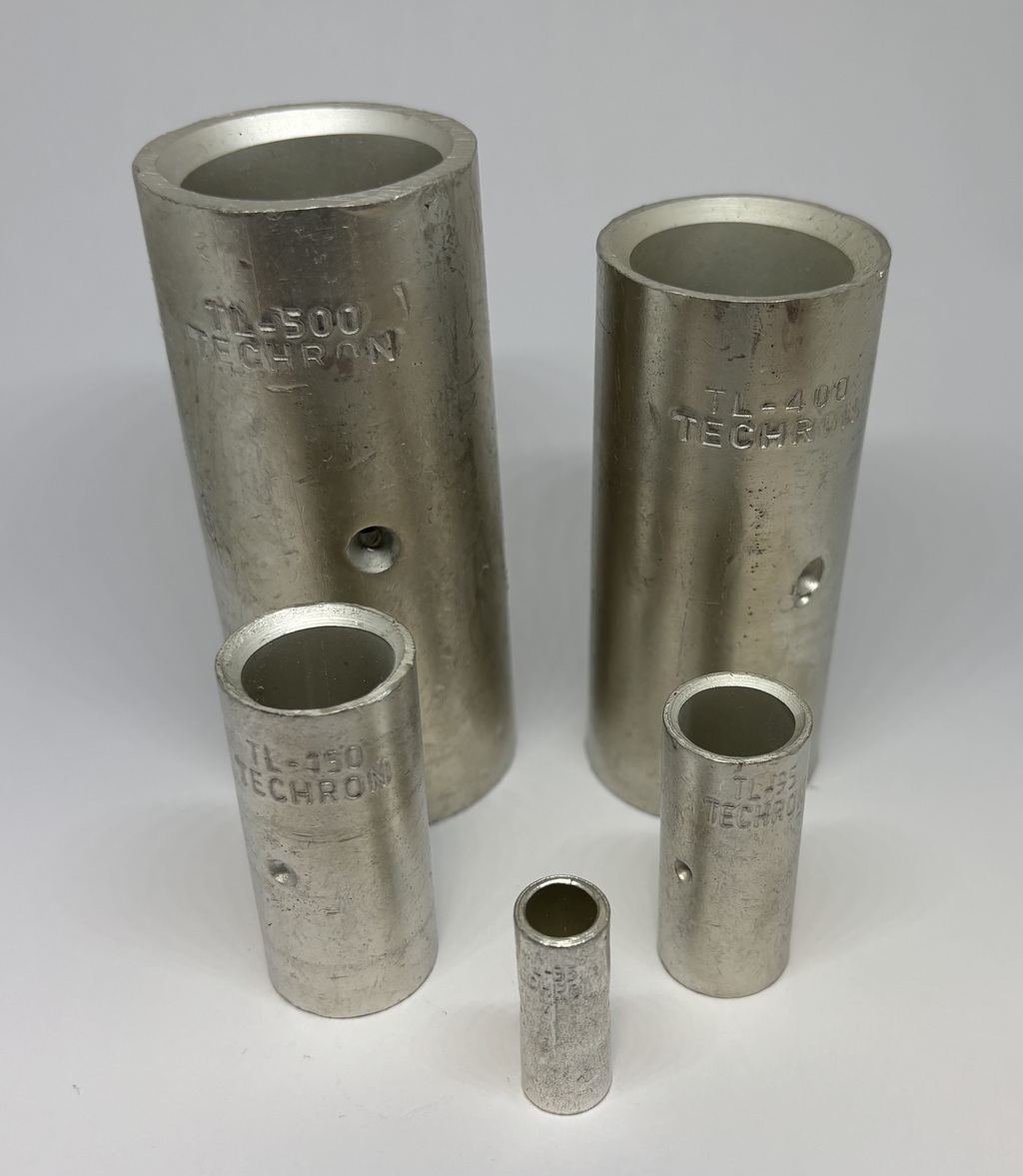

Copper Tin Plated Crimping Ferrules type tested to SANS IEC
61238-1 Standard
Sizes : 1.5mm2 to 1000mm2
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection

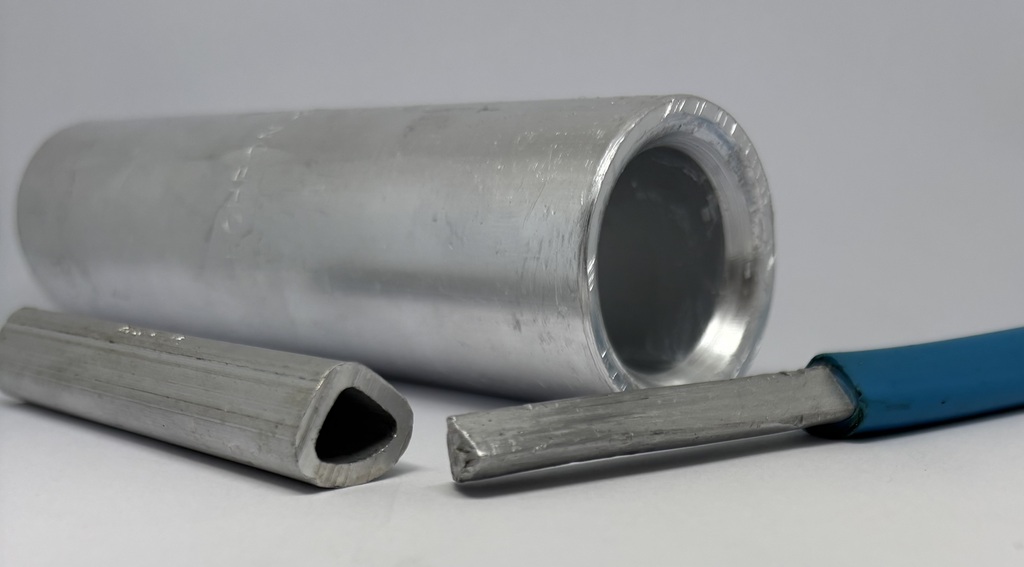

Aluminium Ferrules Offered in 4 Core Sector and Round Barrel Cable Entry
Sizes : 25mm2 to 300mm2
Special Sizes offered on Request
Manufactured from high grade aluminium and chemically cleaned and etched for durable corrosive protection
Application : Aluminium ferrules are primarily used for joining aluminium to aluminium conductors

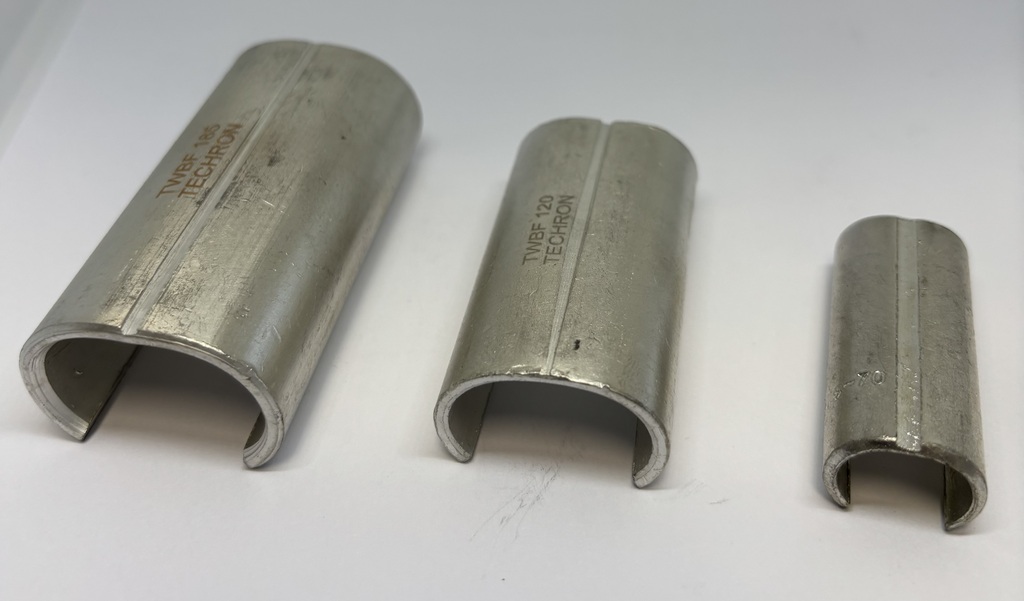

Copper Tin Plated Weakback Ferrules type tested to SANS IEC
61238-1 Standard
Sizes : 25mm2 to 300mm2
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection
Application ; Weakback ferrules are used for joining copper conductors by means of a combination of solder sweating and crimping. This is an old method of cable jointing but is still widely used in some Government utility institutions

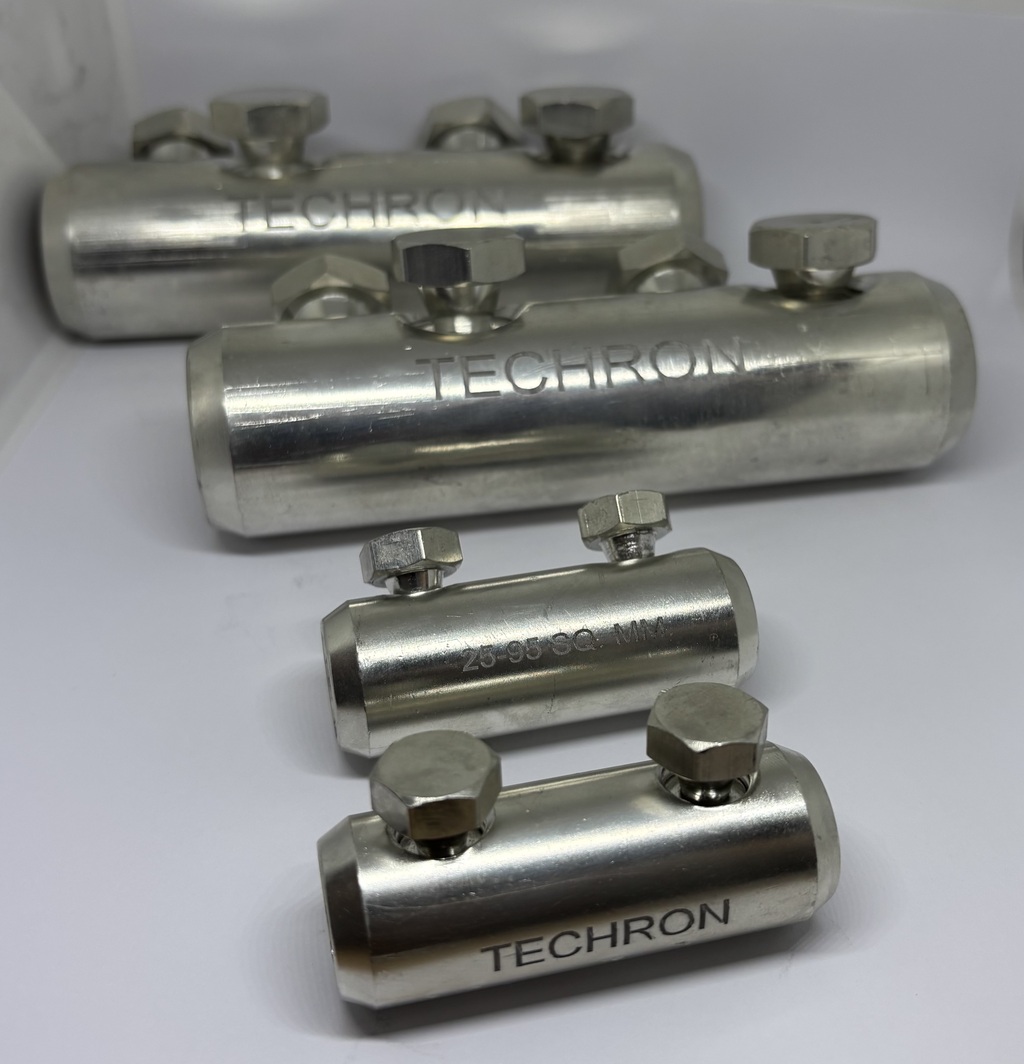

Torque shear ferrules consist of a high grade tin plated aluminium ferrule body with shear bolts. With only four sizes available in the range, a single torque shear ferrule can accommodate several conductor sizes. They are designed for the perfect fit in low or medium voltage cable up to 42kV. Each torque shear ferrule is factory conductive grease filled for protection against moisture and oxidation. Once the bolts are tightened the heads are shared of and termination is complete

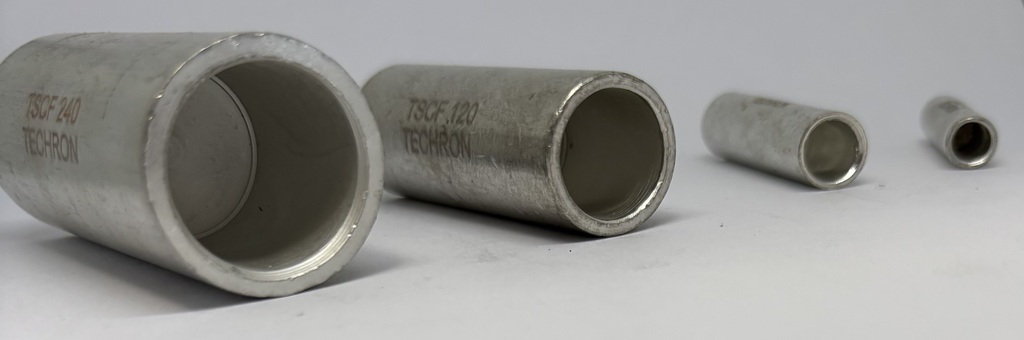

Copper Tin Plated Solid Centre Crimping Ferrules type tested to SANS IEC
61238-1 Standard
Sizes : 16mm2 to 300mm2
Manufactured from high grade 99.9% copper and tin plated for greater conductivity and corrosive protection
Solid Centre Ferrules are commonly used for joining of copper cables by means of solder sweating or by crimping method and are specified for use to prevent water ingress and contamination of conductors in cable jointing

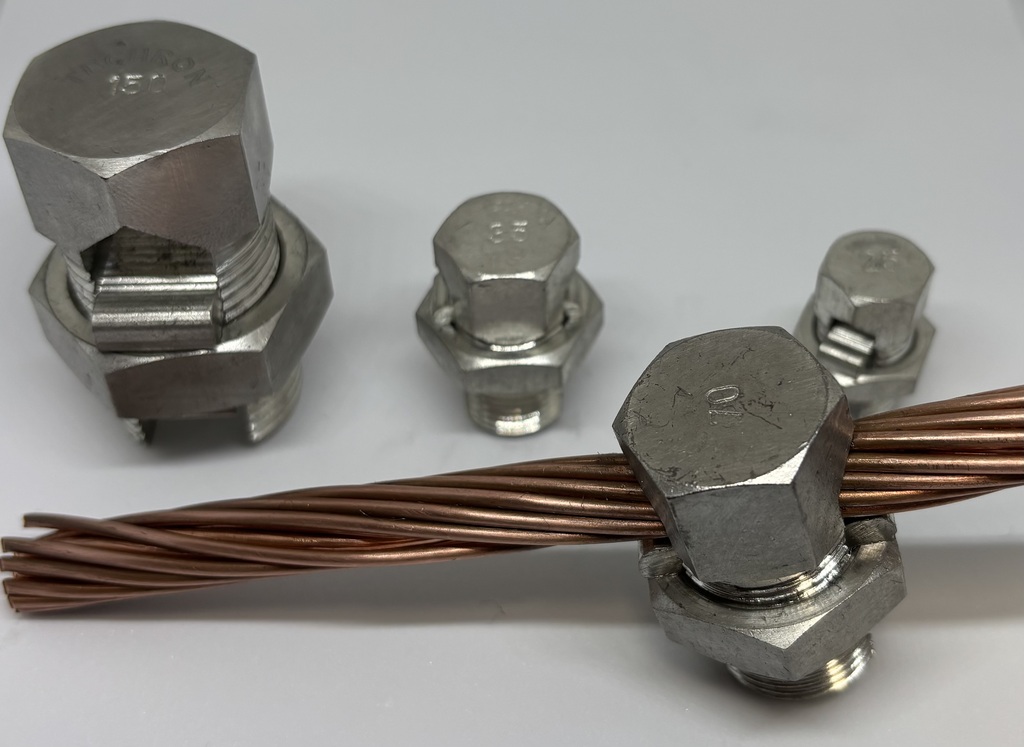

Brass Tin Plated Split Bolts/Linetaps
type tested and conforms to
BS61238-1 Standard
Sizes : 16mm2 to 150mm2
CNC Manufactured from high grade pure brass and tin plated for greater conductivity and corrosive protection
Application : Used for joining overhead or underground conductors as well as bare conductors for earthing applications

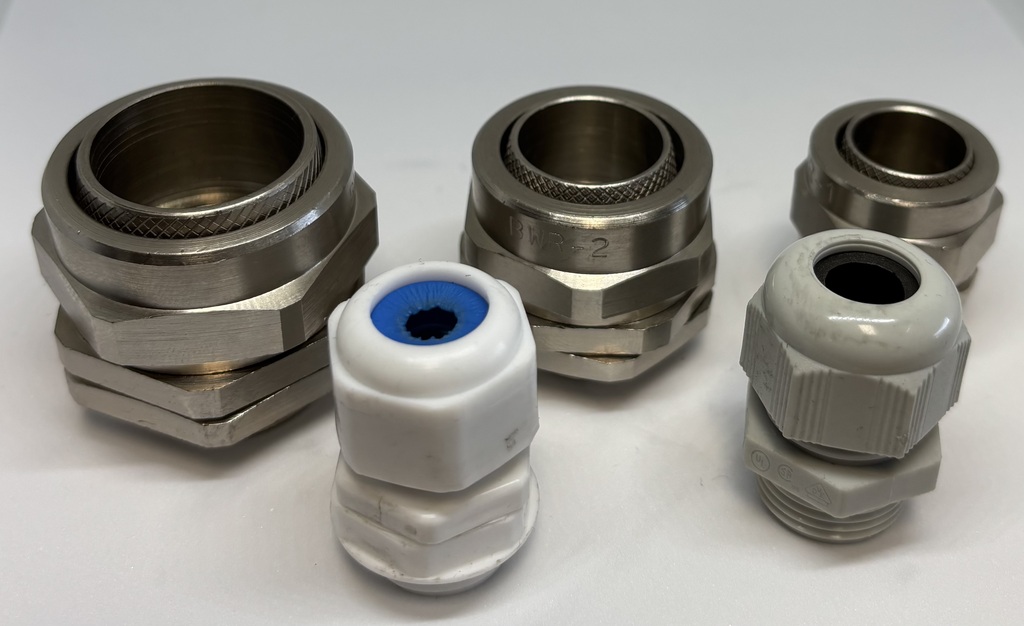

Cable Glands type tested to SANS IEC
62444 , BS6121 , EN50262 Standards
Metal Adjustable Glands
Sizes : BWR Adjustable(SWA)Metal Glands NO0 , NO1 , NO2 , NO3 , NO4 , NO5 , NO6 , NO7
Metal Compression Glands
Sizes : A2 (COMPRESSION)Metal Glands NO0 , NO1 , NO2 , NO3 , NO4 , NO5 , NO6 , NO7
Metal Cable Glands are manufactured from high grade Brass and Nickel plated for corrosive protection , IP68 Rated
PVC Glands
Sizes : PVC PG (COMPRESSION) Glands PG7 , PG9 , PG11 , PG13.5 , PG16 , PG21 , PG29 , PG36 , PG42 , PG48
PVC PG Cable Glands are manufactured from Nylon Plastic ( UL-E240925 ) and the Seal is made from NBR Nitrile Rubber , IP68 Rated
Application ; Cable Glands are used to secure , protect and seal cables to electrical equipment and enclosures as well as terminals.They are used in a variety of applications including electrical , telecommunications and marine environments

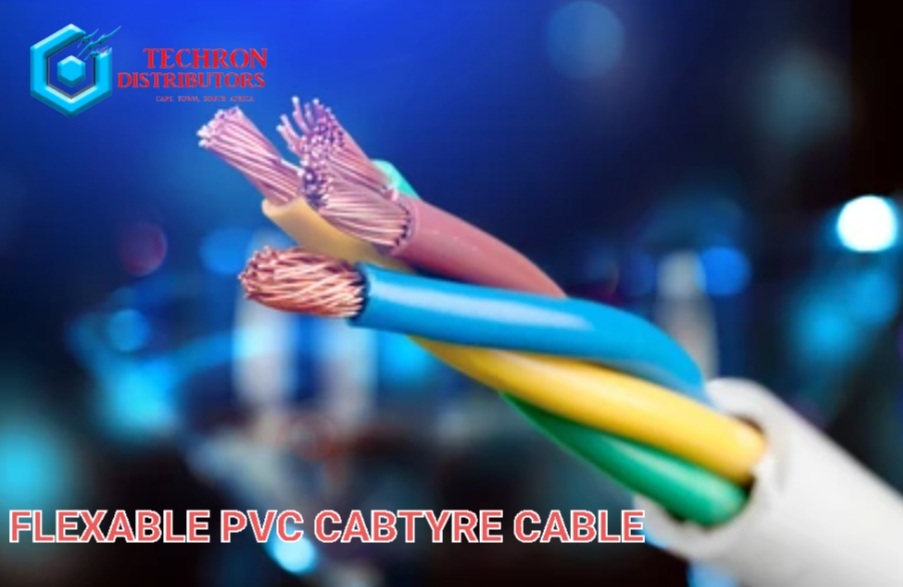

Cabtyre Cables are high conductivity bunched copper conductors, insulated and colour coded with a general purpose flexible grade PVC. The cores are then twisted together for maximum flexibility and protection covered with soft flexible PVC..They are manufactured and type tested to IEC 60227, SANS 1574-2
Voltage Rating:2000/3000 Volts
Temperature Range:-10° to +80°C
Flexibility Class: 5
Conductor Type: High
conductivity annealed copper
Insulation Material: PVC
Sheath Material: PVC
Sheath Colours: Black and White
Core Colours:
2 core - Blue, Brown
3 core - Blue, Brown, Green/Yellow
4 core - Blue, Brown, Black, Green/Yellow
5 core - Blue, Brown, Black, Green/Yellow, Violet
7 core - Blue, Brown, Black, Green/Yellow, Violet, Pink,
Orange

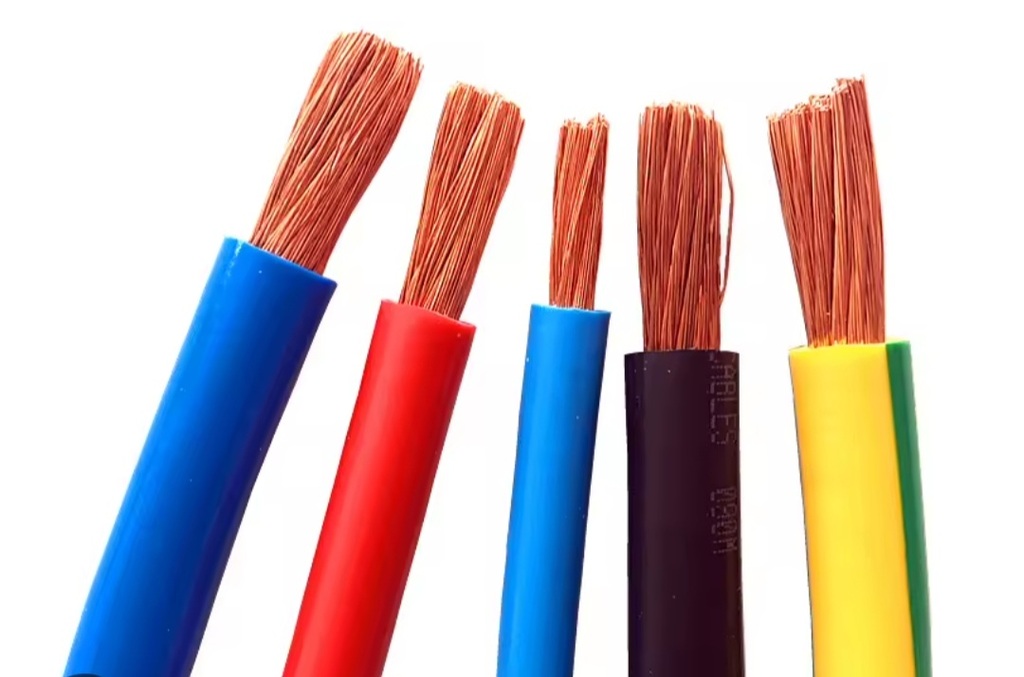

Welding cable has a single annealed copper conductor that is fine stranded to provide extreme flexibility. Stranded Welding cable is generally more flexible than normal electrical wire and power cables and has a thermoset jacket for added flexibility and high temperature resistance.
They are manufactured and type tested to IEC 60227, SANS 1574-2-1507
Voltage Rating:600/1000 Volts
Temperature Range:-10° to +80°C
Flexibility Class: 5
Conductor Type: High
conductivity annealed copper
Insulation Material: PVC/RUBBER
Colours: Black , White , Red , Blue , Brown , Yellow ,
Sizes : 16mm2 to 185mm2

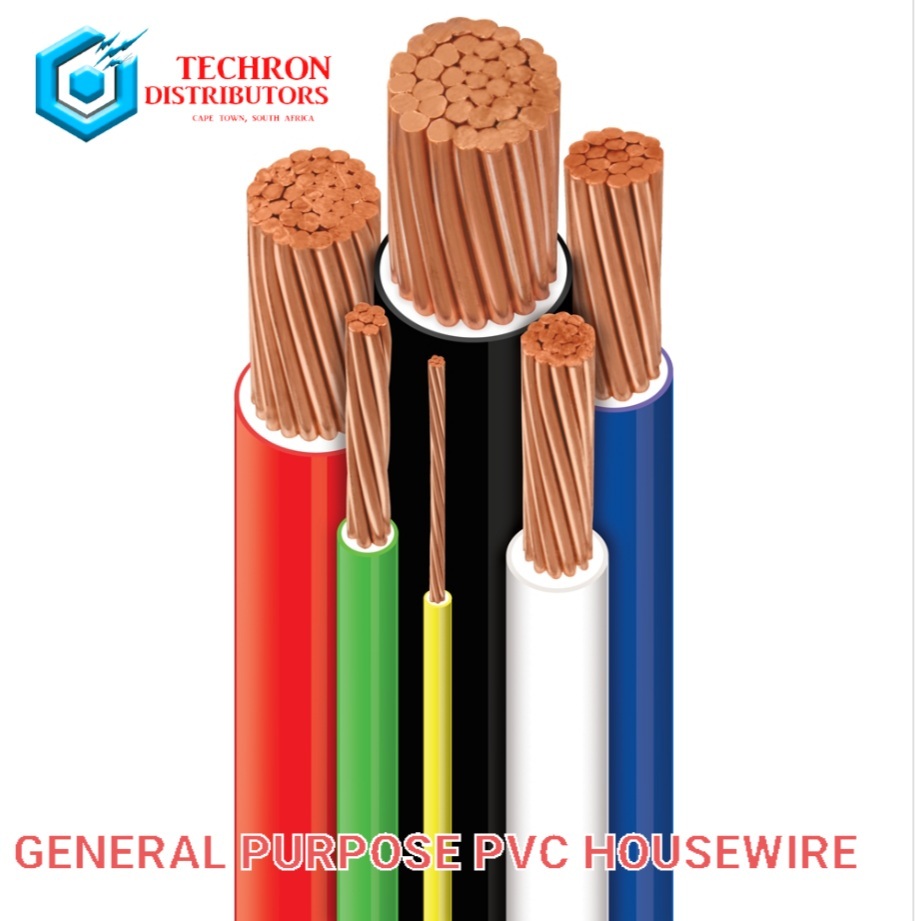

General Purpose Wire is used for the wiring of all types of control panels, buildings, factors, relay racks, etc. General purpose HOUSE WIRE is used by electrical contractors, electricians, municipalities and all major switchboard manufacturers.
They are manufactured and type tested to IEC 60227, SANS 1574-2-1507
Voltage Rating: 600/1000 Volts
Temperature Range:-10° to +80°C
Flexibility Class: 2
Conductor Type: High
conductivity annealed copper
Insulation Material: PVC
Colours: Black , White , Red , Blue , Brown , Yellow ,
Sizes : 1.5mm2 to 95mm2
Specialized Copper Cable is used in many applications example Marine instrumentation , Industrial Machinery , IT installation , etc
These are offered in special application manufacturing to customer tailored needs and carry IEC specifications.

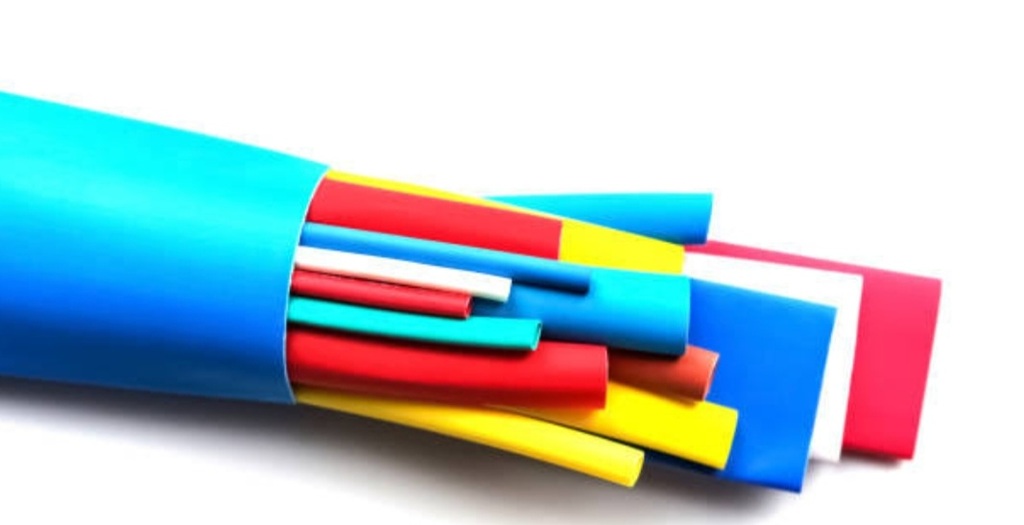

Heat Shrink Tubing is a shrinkable plastic tube used to insulate wires providing abrasion resistance and environmental protection for stranded and sold wire conductors ,connections, joints and terminals in electrical wiring.
Offered in Thin , Medium and Heavy walled.
Sizes : 1.2mm to 101mm
Colours : Black , Clear , White , Red , Blue , Yellow and Green

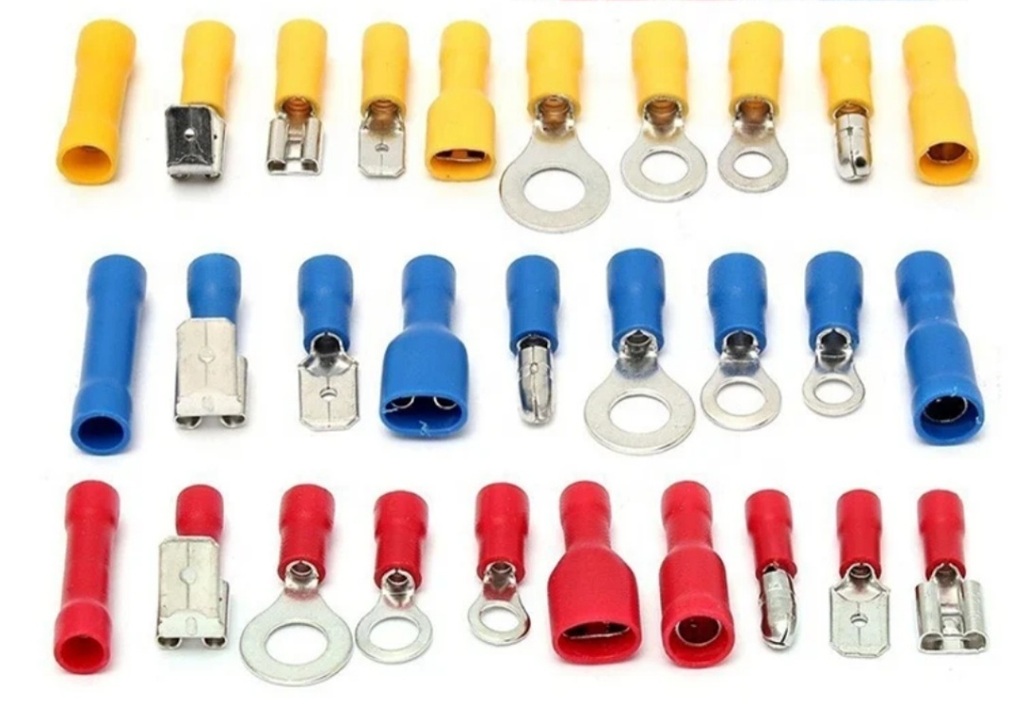

Pre-insulated terminals are electrical connectors with a built-in insulation sleeve. They are used to connect wires and cables to electrical systems.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, and Mine.
Types: Ring terminals, Fork terminals, Pin terminals, Tab terminals, and Bullet terminals.
Colours: Red , Blue , Yellow
Sizes : Red(1.5mm2)
Blue(2.5mm2)
Yellow(4-6mm2)
All offered in single and twin grip

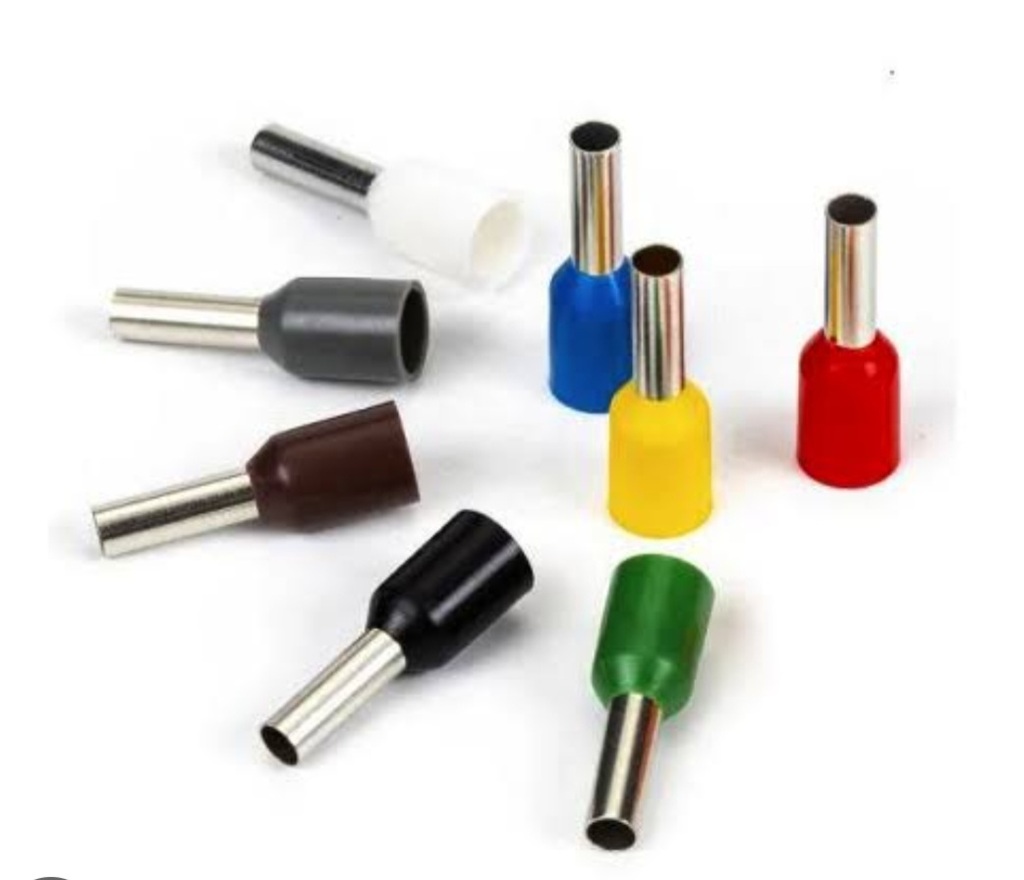

Also known as cord end terminals or end sleeves, Bootlace Ferrules are copper tubes that are crimped over the end of a stranded wire.They are mainly used to provide a reliable connection for wire end termination on stranded conductors.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, and Mine.
Types: Pre-Insulated and Un-Insulated.
Colours: Black , White , Orange,
Ivory , Blue , Brown ,
Grey , Red , Beige ,
Green , Violet ,
Turquoise , Yellow
Sizes : 0.25mm2 to 35mm2
All offered in single and twin ends

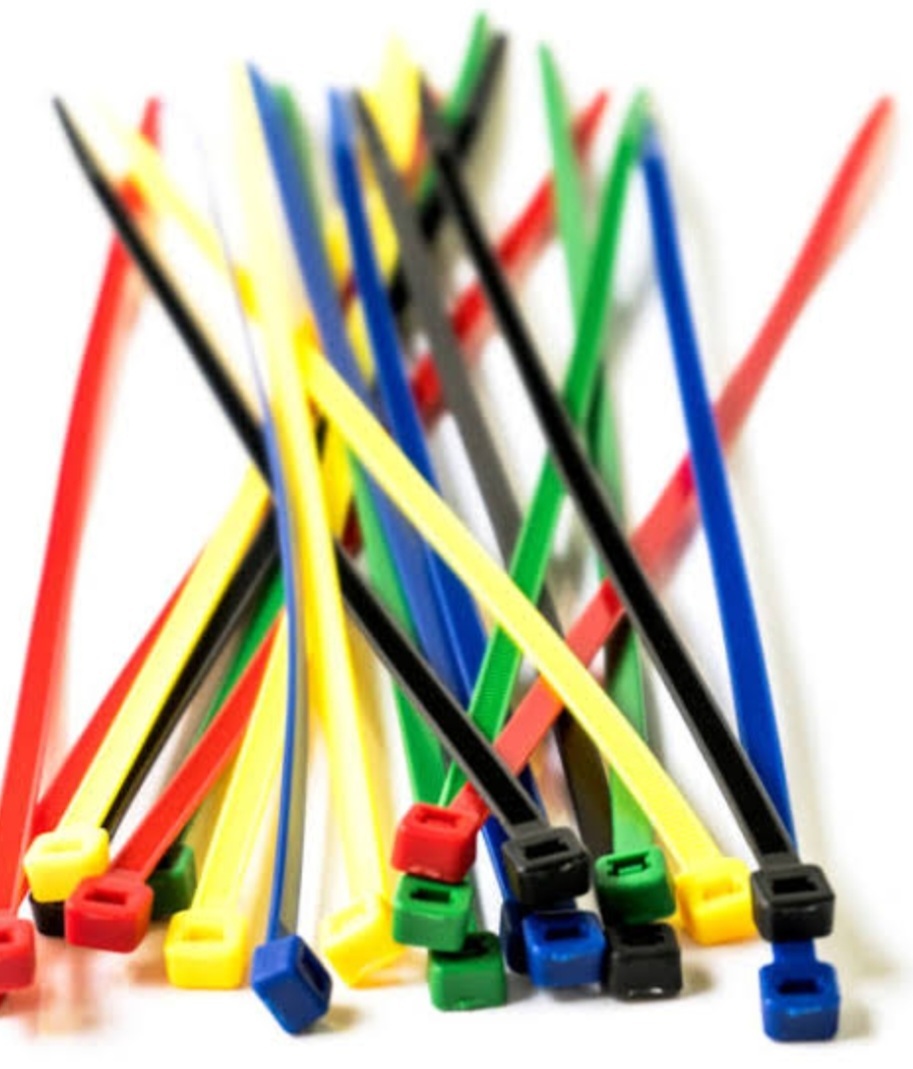

Cable ties are used for many purposes,including organizing cables, securing components, and holding things together.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, Gardening and Mine.
Types: Nylon and Ball Type Stainless Steel.
Colours: Black , Natural , White ,
Stainless Steel and
Special order colours
Sizes : 100mm to 500mm

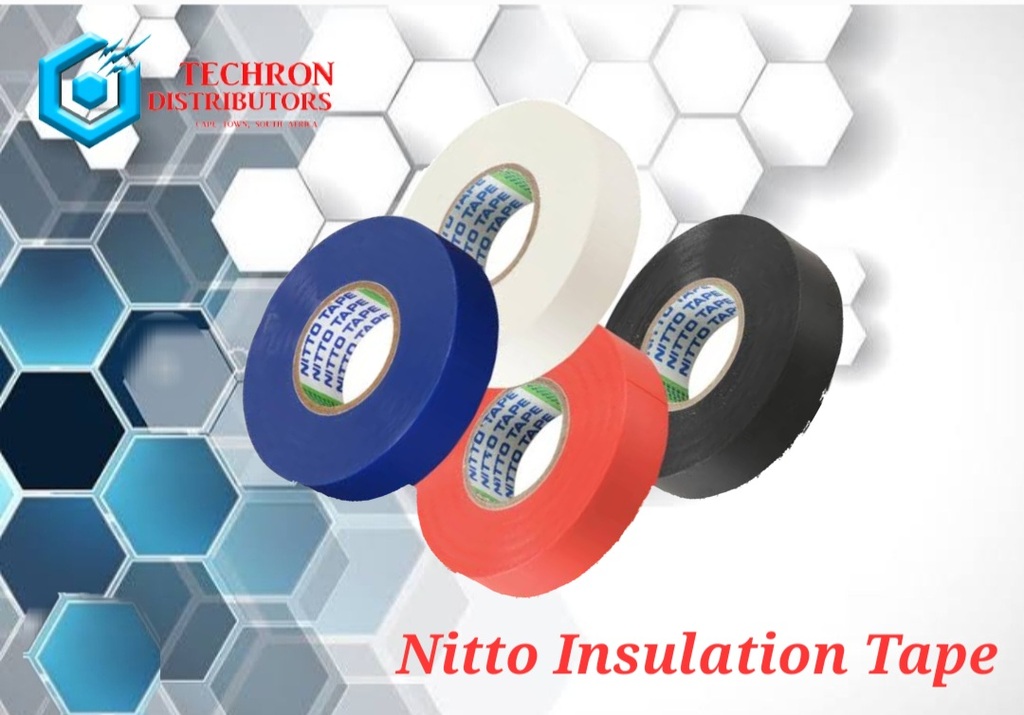

Insulation tape is used to insulate, protect, and shield wires and cables. It can also be used to prevent heat loss or transfer.
Electrical insulation tape:

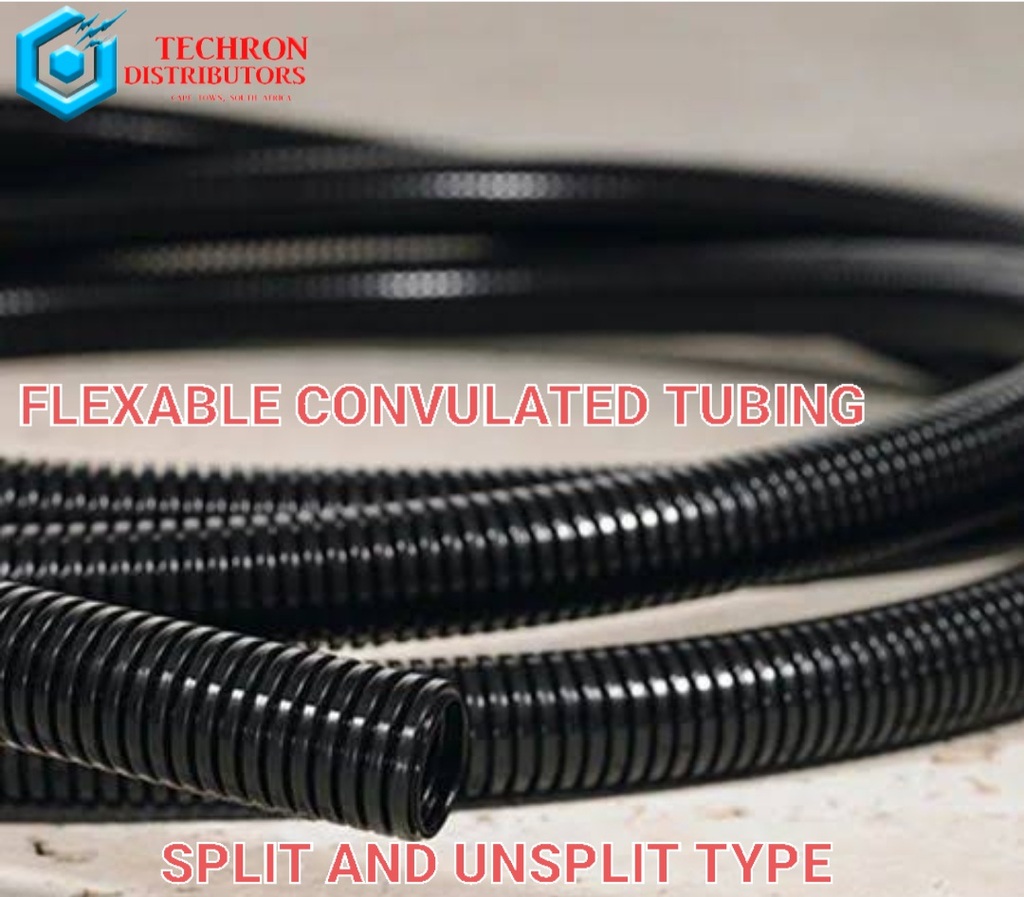

Convoluted Corrogated tubing is used to protect electrical wiring and cables in a variety of industries, including automotive, aerospace, and construction. It's also known as corrugated tubing or wire loom tubing.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, and Mine.
Types: PVC Split and Unsplit , Also available in metal
Colours: Black , White , Grey
Sizes : 10mm to 25mm

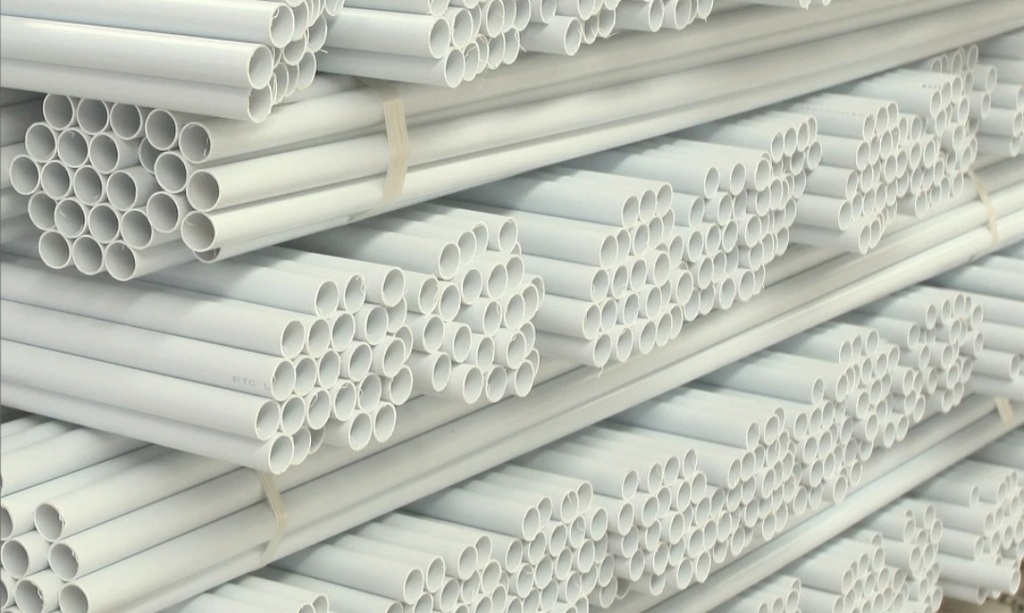

PVC conduit is used to protect electrical cables and wires from damage and the elements. It's commonly used in homes, commercial buildings, and industrial facilities.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, Schools , and Mining.
Types: PVC
Colours: White
Sizes : 20mm and 25mm

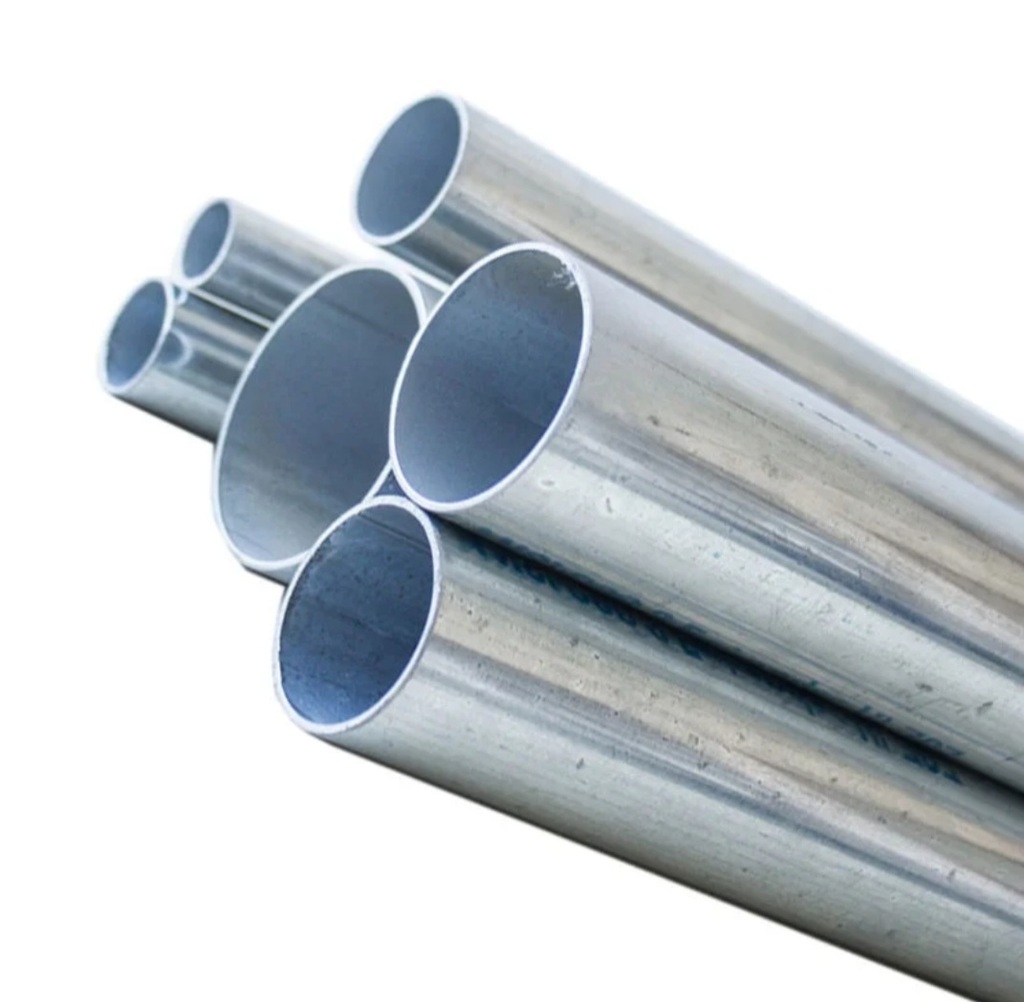

Metal Bosal conduit is used to protect electrical cables and wires from damage and the elements. It's commonly used in homes, commercial buildings, and industrial facilities.
Applications: Automotive, Industrial, Steel smelting, Petrochemical industry, Electric power, Construction, Airport, Schools , Prisons and Mining.
Types: Metal
Colours: Galvinized Silver
Sizes : 20mm and 25mm
Cast resin joint kits are used to create a secure, insulated electrical connection between cables by pouring a liquid resin around the stripped cable ends within a mold, forming a solid, waterproof seal that protects the joint from harsh environments and provides excellent electrical insulation; they are commonly used for connecting power cables in various applications like underground, underwater, and outdoor installations, allowing for straight through, parallel, or branch connections depending on the kit design.

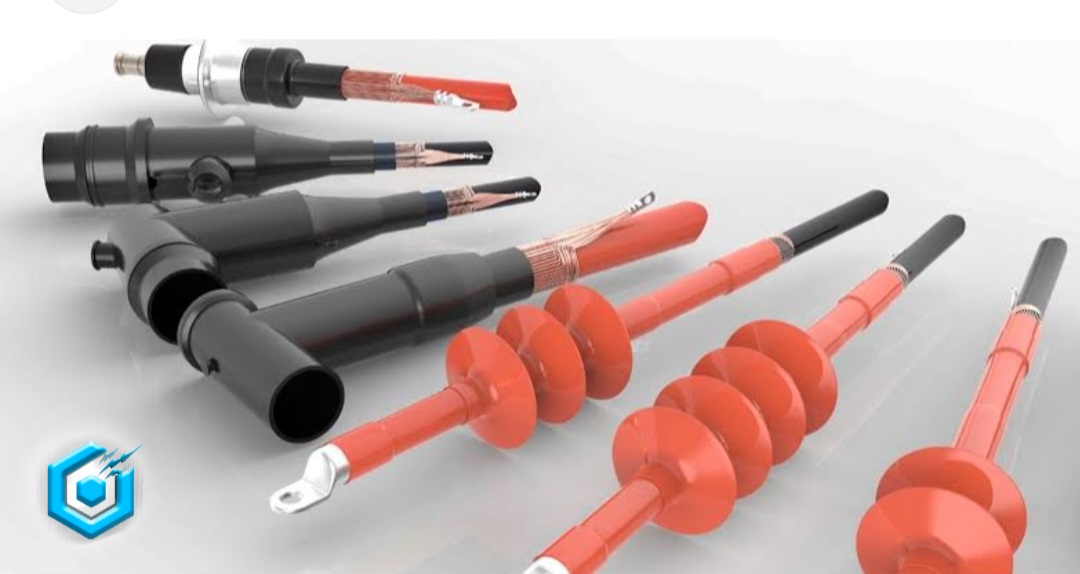

Heat shrink cable joint kits for Low and Medium voltage power cables are used to restore / join damaged or new application electrical cable.
Heat shrink termination kits are used to connect, terminate, and join electrical cables. They're used in a variety of applications, including indoor and outdoor power distribution.

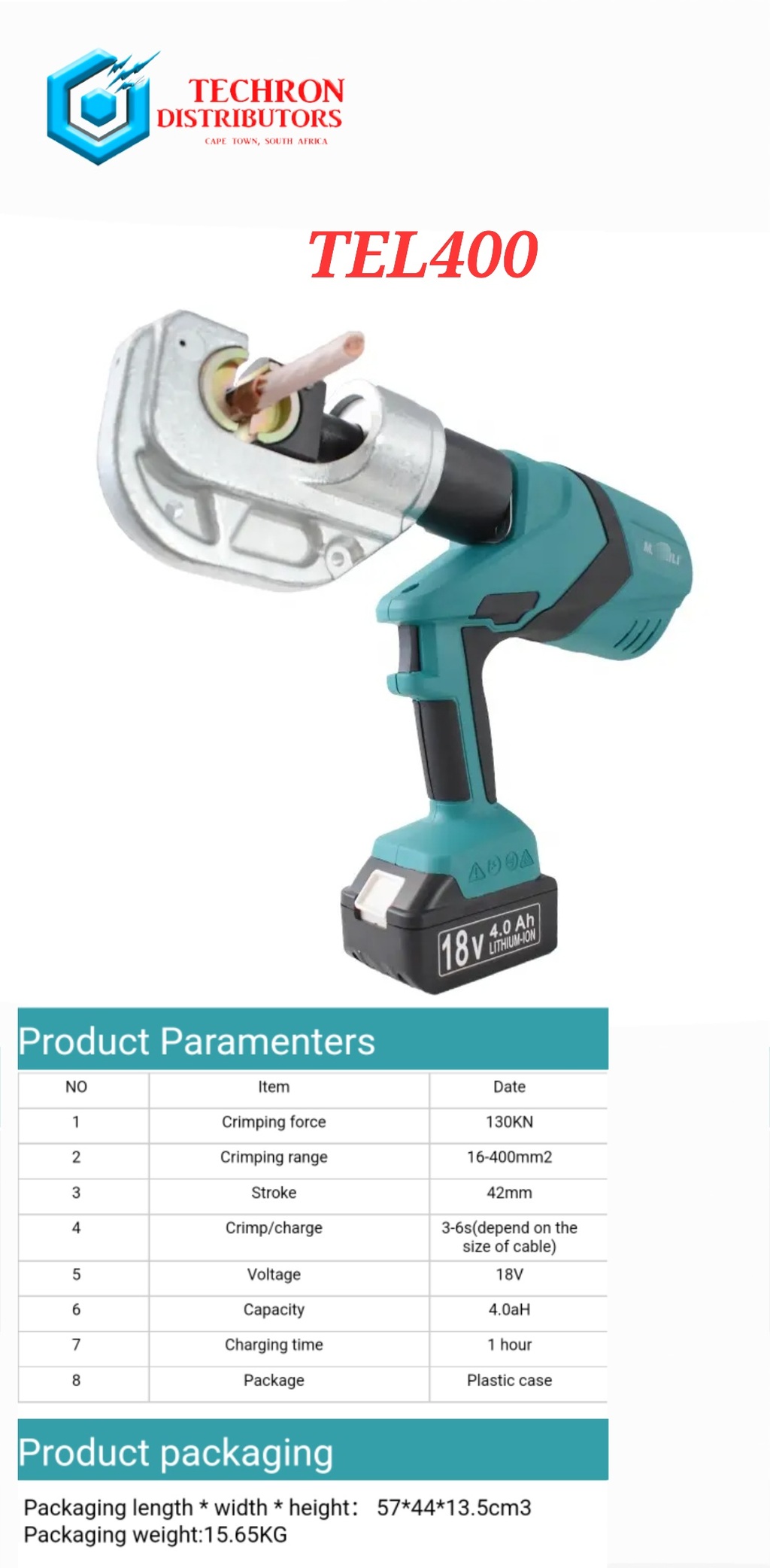

TEL400B Battery Operated Hydraulic Crimping Tool.
Exerting 12 Tons of Pressure at 700 Bar , 10000 psi thereby offering ease of crimping cable lugs of sizes 16mm2 to 400mm2.
Cutting work load and time by more than half the time using standard hand hydraulic tools.
They can easily be utilized in tight spaces like trenches switch panels , etc.
This tool utilizes Hexagon as well as Indent style dies for preferred crimping method and hydraulics are operated by means of 18 volt 4AH lithium ion rechargeable batteries.
The tools are equipped with on board LED screens which display crimping cycles , low battery and service intervals.
These batteries offer crimping cycles of 150 crimps on one charge up to 150mm2.

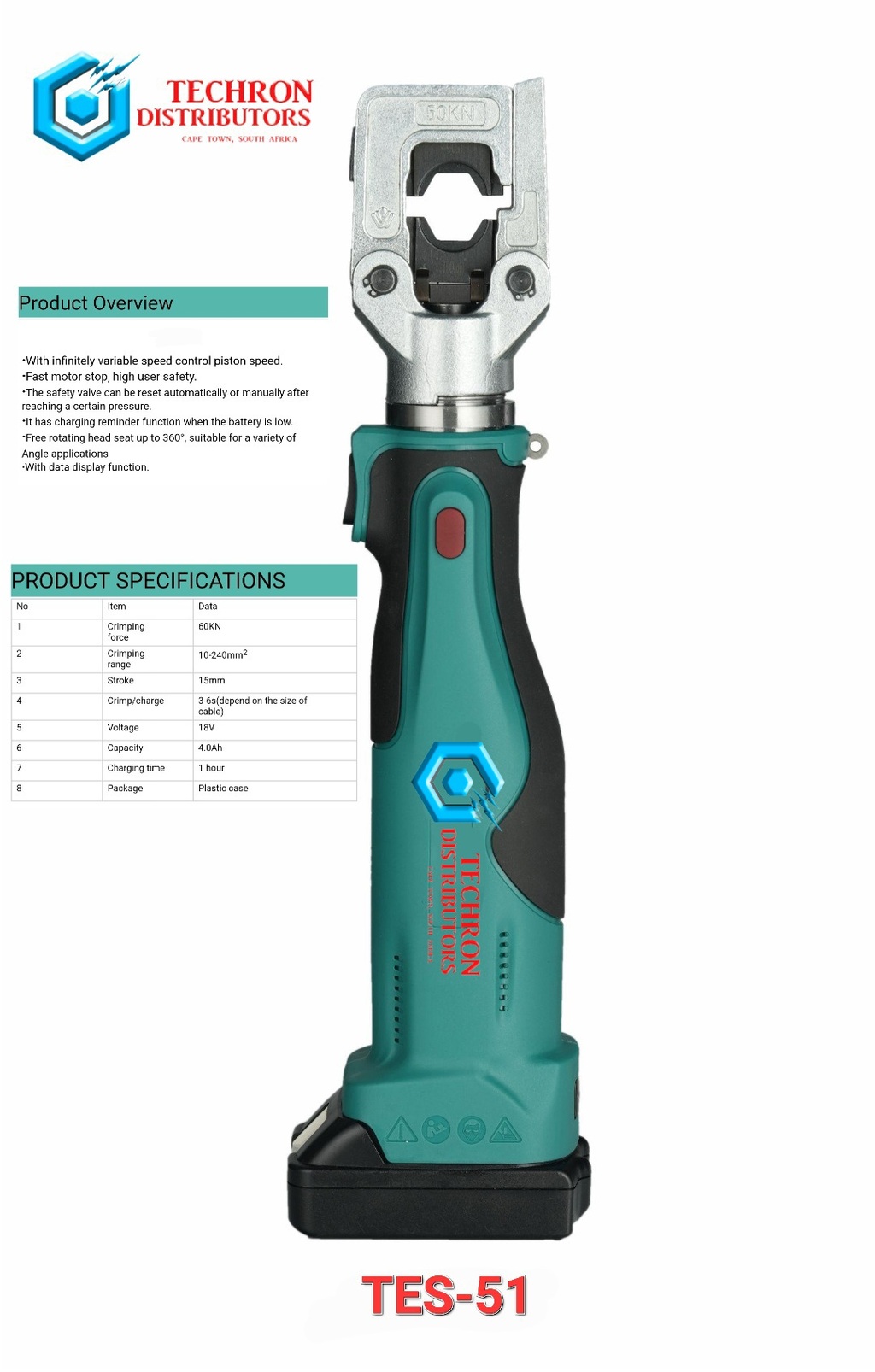

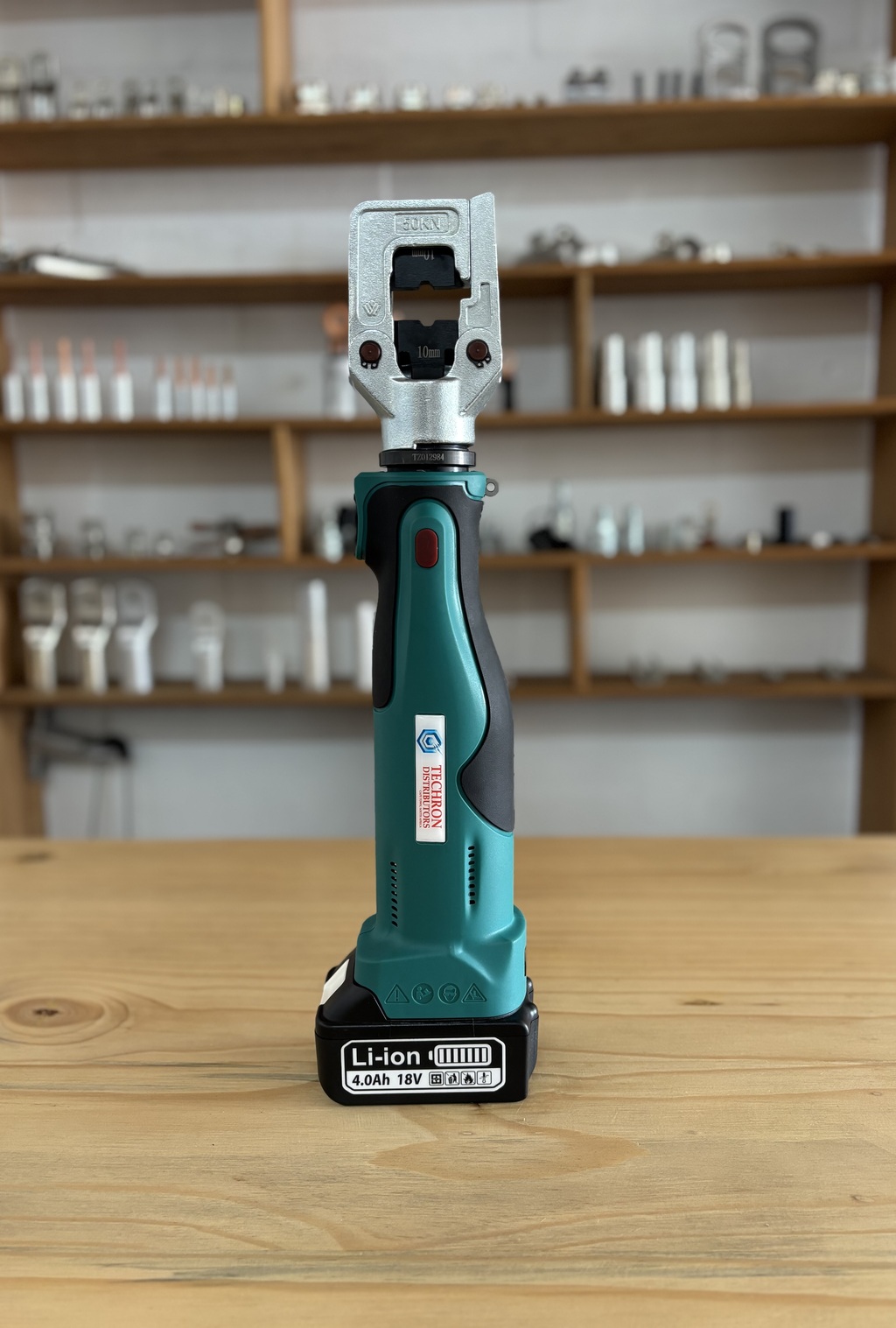

TES-51 Battery Operated Hydraulic Crimping Tool.
Exerting 6 Tons of Pressure at 700 Bar , 10000 psi thereby offering ease of crimping cable lugs of sizes 16mm2 to 240mm2.
Cutting work load and time by more than half the time using standard hand hydraulic tools.
These crimping tools are light weight yet extremely durable , can be operated by one hand and offers auto cut out after full pressure is reached and are the preferred crimping tool by switchboard manufacturers because of their latching style crimping heads which can reach spaces where a standard crimping tool cannot.
The tools are equipped with on board LED screens which display crimping cycles , low battery and service intervals.
This tool utilizes Hexagon and hydraulics are operated by means of 18 volt 4AH slimline lithium ion rechargeable batteries.
These batteries offer crimping cycles of 150 crimps on one charge up to 150mm2.

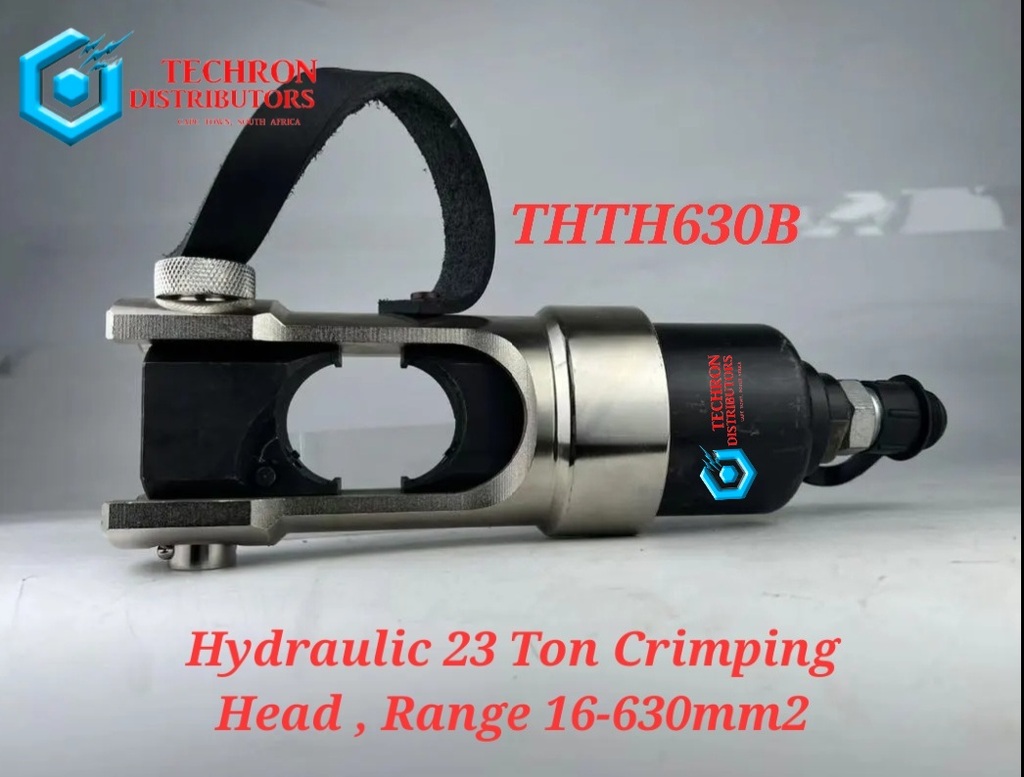

THTH630B Hydraulic Crimping
head.
Exerting 23 Tons of Pressure at 700 Bar , 10000 psi crimping range sizes 16mm2 to 630mm2.
With its "H" style head it makes in-line jointing easier and offers a wider range for in-line crimping of ferrules.
This tool accommodates "C" shape hexagon and Indentor dies by means of an adaptor die for sizes 16mm2 to 400mm2 for Hexagon and 35mm2 to 300mm2 for Indentor dies and also comes with stand alone hexagon dies 500 and 630mm2.
The crimping head is operated by means of hydraulic foot pumps , battery pumps and electric hydraulic pumps
( Our range of pumps can be found displayed in our product offering herein).

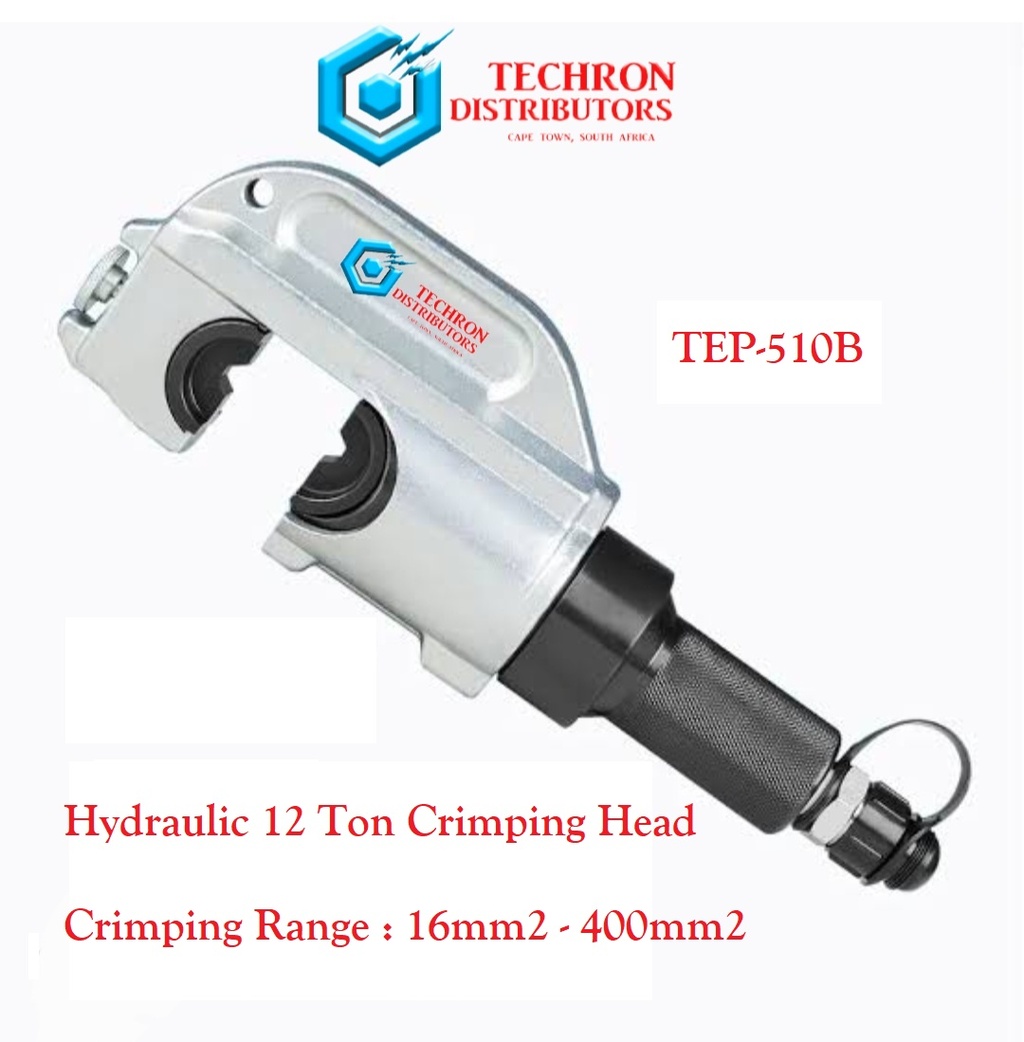

TEP510BH Hydraulic Crimping
head.
Exerting 12 Tons of Pressure at 700 Bar , 10000 psi crimping range sizes 16mm2 to 400mm2.
With its 42mm Jaw opening it makes in-line jointing for up to 185mm2 cable possible by easy removal of tool after termination.
This tool accommodates "C" shape hexagon and Indentor dies for sizes 16mm2 to 400mm2 for Hexagon and 35mm2 to 300mm2 for Indentor dies.
The crimping head is operated by means of hydraulic foot pumps , battery pumps and electric hydraulic pumps
( Our range of pumps can be found displayed in our product offering herein).

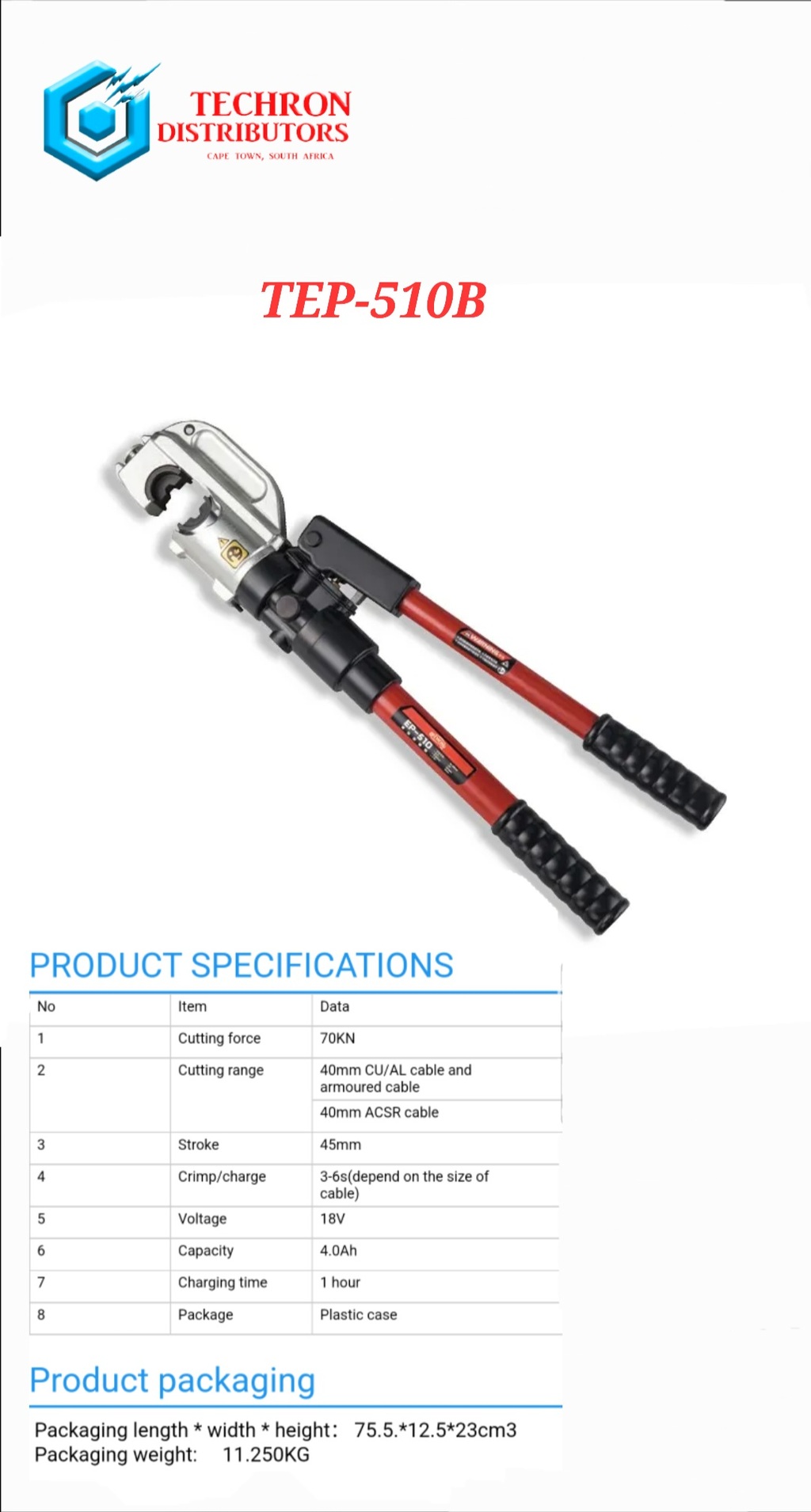

TEP510B Hydraulic Self Contained Crimping Tool. Exerting 12 Tons of Pressure at 700 Bar , 10000 psi crimping range sizes 16mm2 to 400mm2.
This crimping tool is equipped with a by-pass valve that shuts off after full pressure is reached.
With its 42mm Jaw opening it makes in-line jointing for up to 185mm2 cable possible by easy removal of tool after termination.
This tool accommodates "C" shape hexagon and Indentor dies for sizes 16mm2 to 400mm2 for Hexagon and 35mm2 to 300mm2 for Indentor dies.

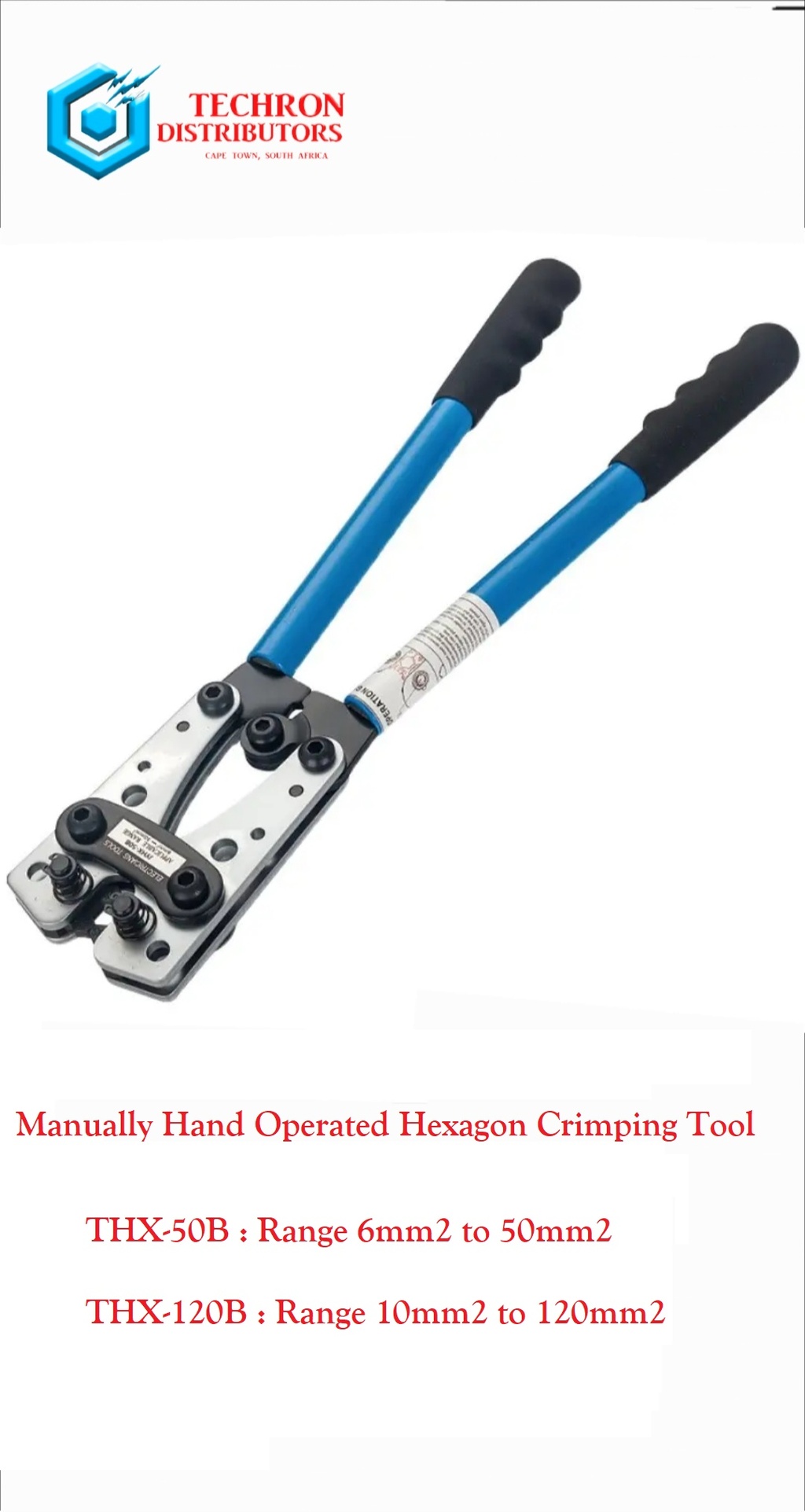

Manually Hand Operated Crimping Tool.
With Build in rotating hexagon crimping dies.
Crimping action is swift and precise and being narrow type dies offers multiple crimps on lug barrels and ferrules.
THX-50B has a crimp range of 6mm2 to 50mm2.
THX-120B has a crimp range of 10mm2 to 120mm2

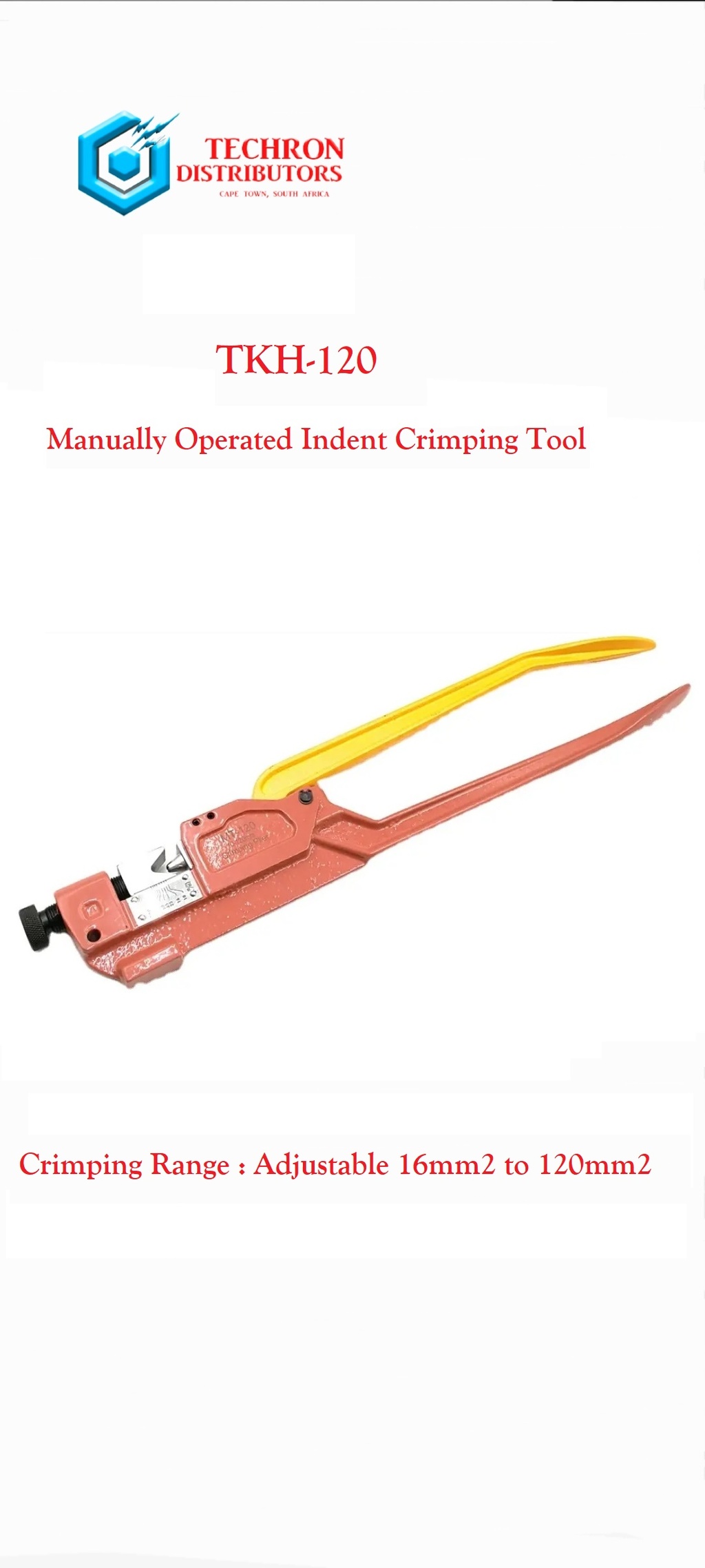

Manually Hand Operated Dieless Indent Crimping Tool.
With Build in adjustable indent crimping die.
Crimping action is swift and precise and with the adjustable indentor die it makes onsite work less stressful whereby one tool for many jobs is possible.
Crimp range : 10mm2 to 120mm2.

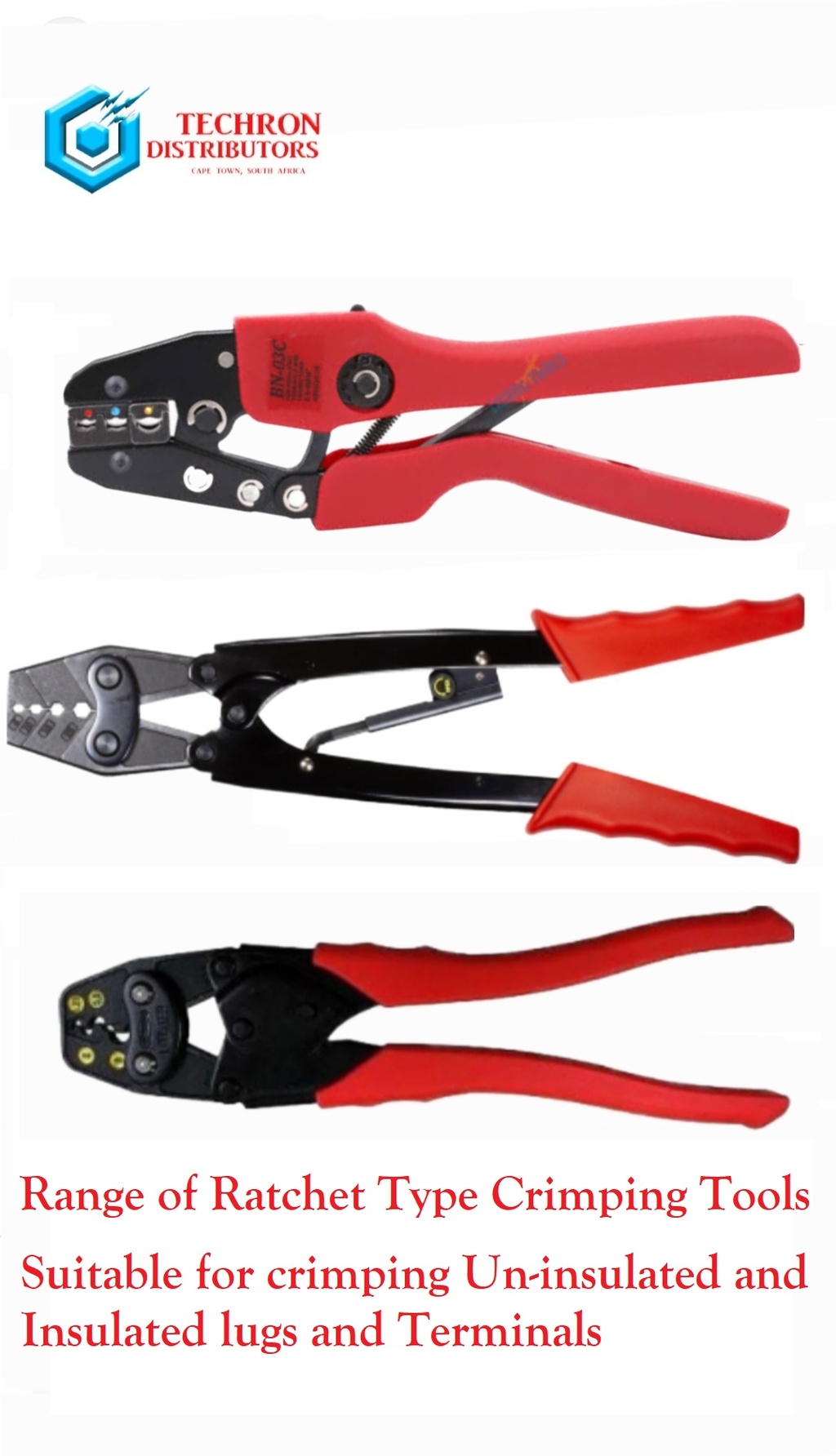

Ratchet Type Quality Crimping Tools.
Available for crimping of Un-insulated and Insulated lugs and terminals.
Sizes usually range from 0.75mm2 to 25mm2
Suitable for electricians , board builders , auto electricians , hobbyist , etc

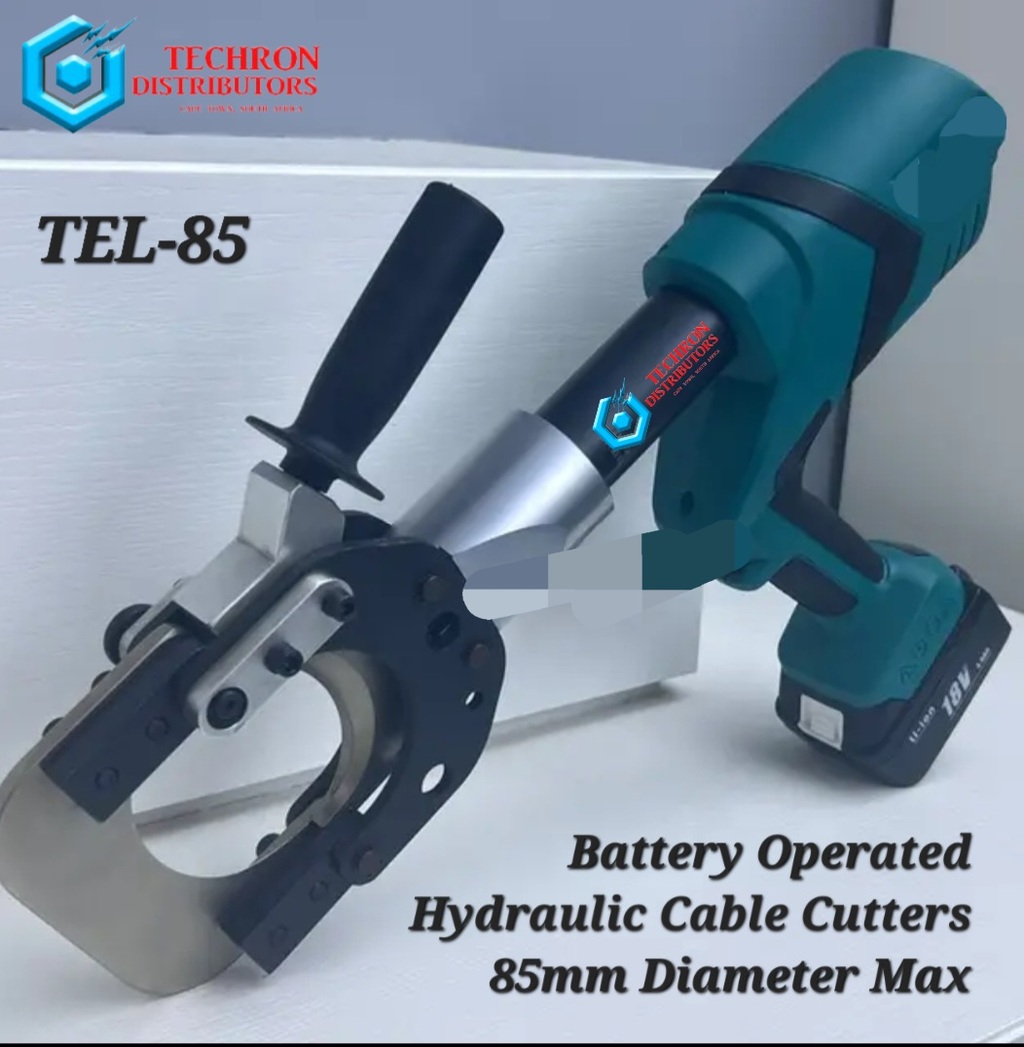

TEL85 Battery Operated Hydraulic Cable Cutting Tool.
Exerting 12 Tons of Pressure at 700 Bar , 10000 psi thereby offering ease of cable cutting sizes 16mm2 to 300mm2 with diameters of single core 85mm maximum.
They are suitable for cutting armored cables with wire armoring up to 3mm and 120mm2 single core.
This tool being battery operated will Cut work load and time by more than half the time than using standard hand hydraulic cable cutting tools.
They can easily be utilized in tight spaces like trenches switch panels , etc.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time.
The cutting heads are latchable type for easy inline cable cutting.
Hydraulics are operated by means of 18 volt 4AH lithium ion rechargeable batteries.
The tools are equipped with on board LED screens which display cutting cycles , low battery and service intervals.
These batteries offer cutting cycles of 150 cuts on one charge up to 95mm2.

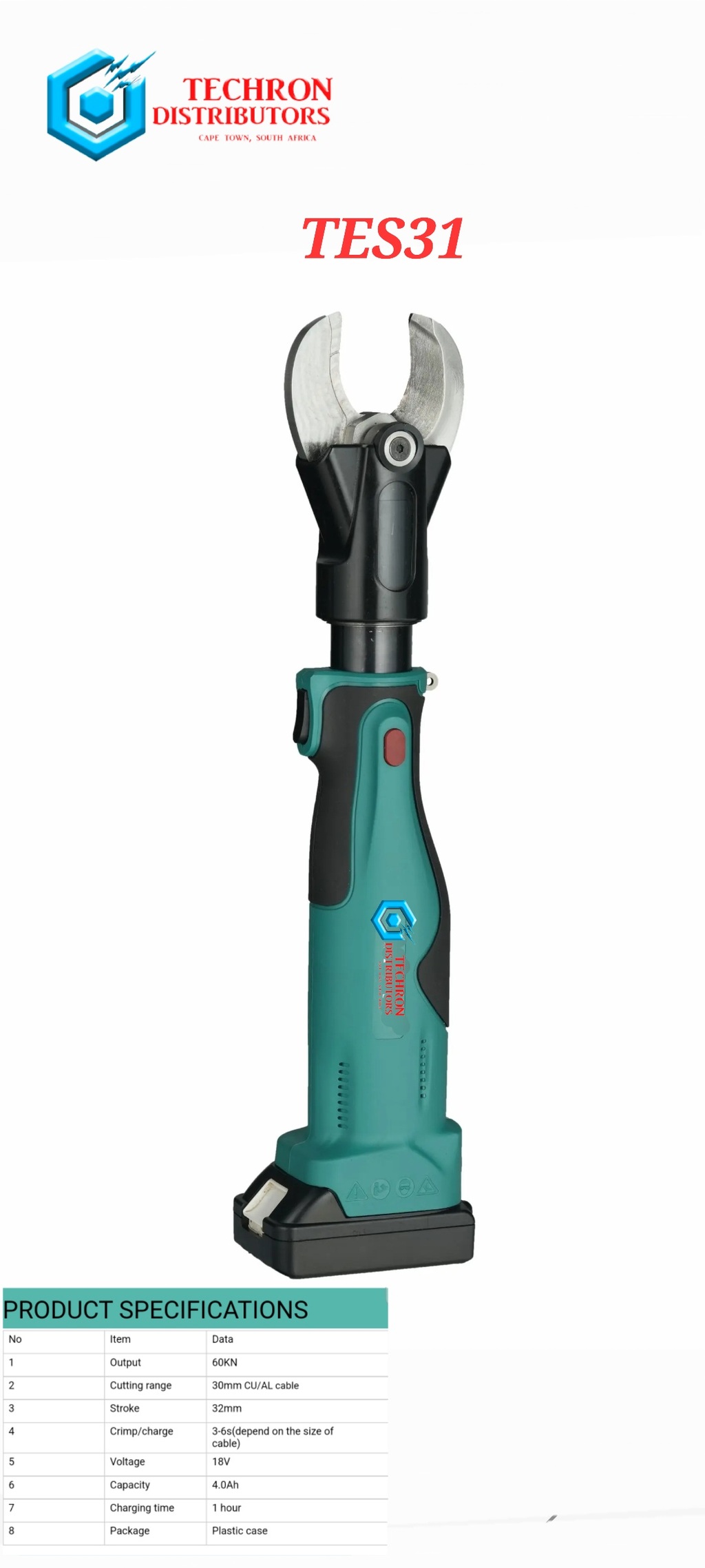

TES-31 Battery Operated Hydraulic Cable Cutting Tool.
Exerting 6 Tons of Pressure at 700 Bar , 10000 psi thereby offering ease of cable cutting sizes 16mm2 to 240mm2 with diameters of single core 32mm maximum.
This tool being battery operated will Cut work load and time by more than half the time than using standard hand hydraulic tools.
These cutting tools are light weight yet extremely durable , can be operated by one hand and offers auto cut out after full pressure is reached and are the preferred cutting tool by switchboard manufacturers because of their scissor style cutting blades which can reach spaces where a standard cable cutter tool cannot.
The tools are equipped with on board LED screens which display cutting cycles , low battery and service intervals.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time
and hydraulics are operated by means of 18 volt 4AH slimline lithium ion rechargeable batteries.
These batteries offer cutting cycles of 150 cuts on one charge up to 95mm2.

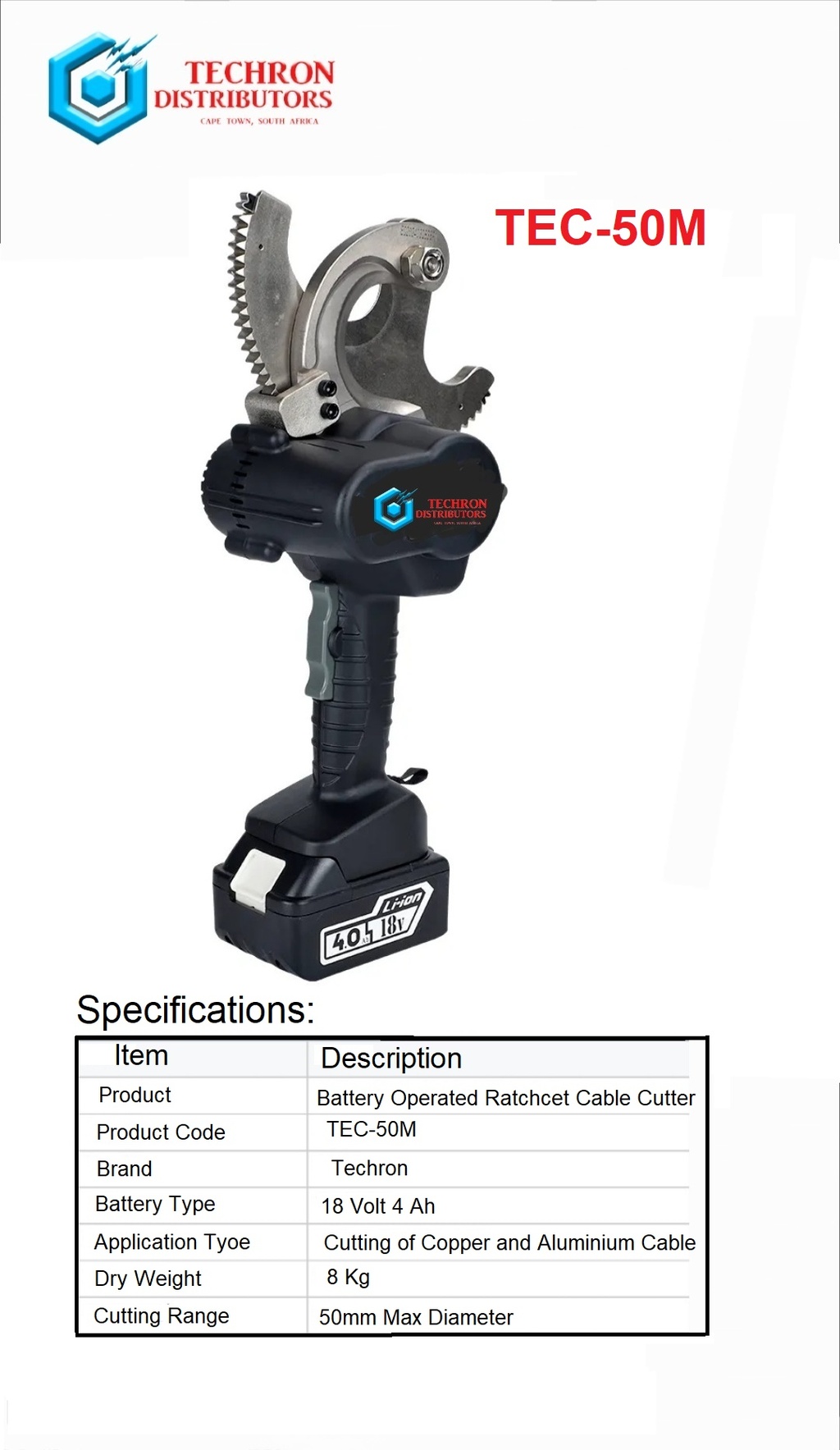

TEC-50M Battery Operated Ratchet Type Hydraulic Cable Cutting Tool.
Exerting 6 Tons of Pressure at 150 Bar , thereby offering ease of cable cutting sizes 16mm2 to 4000mm2 with diameters of single core 50mm maximum.
This tool being battery operated will Cut work load and time by more than half the time than using standard hand hydraulic tools.
These cutting tools are light weight yet extremely durable , can be operated by one hand and offers auto cut out after full pressure is reached.
With ratchet style cutting blades which can reach spaces where a standard cable cutter tools cannot makes it a preferred cutter by many electrical engineers.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time
and hydraulics are operated by means of 18 volt 4AH slimline lithium ion rechargeable batteries.
These batteries offer cutting cycles of 150 cuts on one charge up to 95mm2.

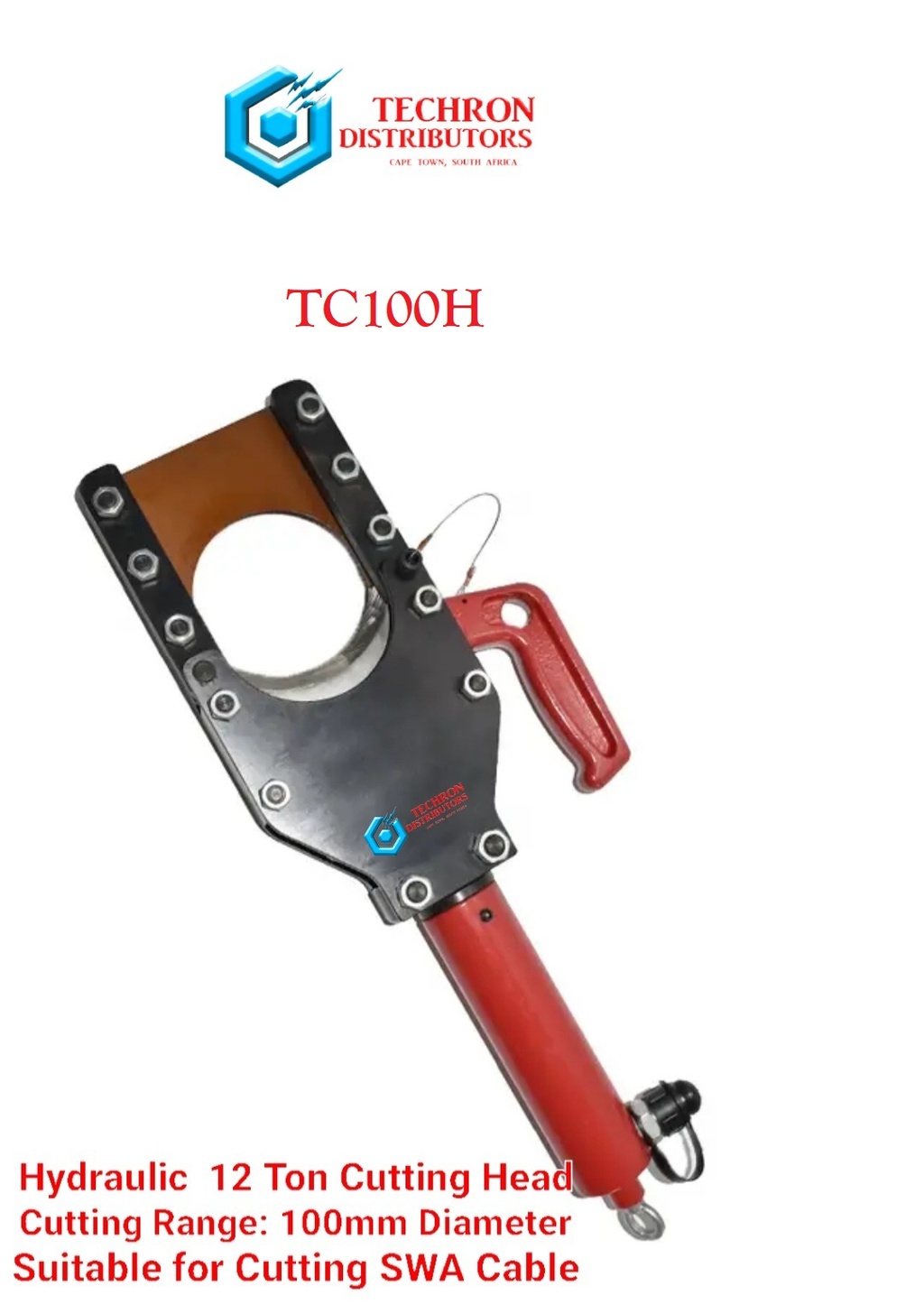

TC100H Hydraulic Cable Cutting Head.
Exerting 12 Tons of Pressure at 700 Bar , 10000 psi.
Cable cutting sizes 16mm2 to 630mm2 with diameters of single core 100mm maximum.
They are suitable for cutting armored cables with wire armoring up to 3mm and 120mm2 single core.
They can easily be utilized in tight spaces like trenches switch panels , etc.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time.
The cutting heads are latchable type for easy inline cable cutting.
The cutting head is operated by means of hydraulic foot pumps , battery pumps and electric hydraulic pumps
( Our range of pumps can be found displayed in our product offering herein).

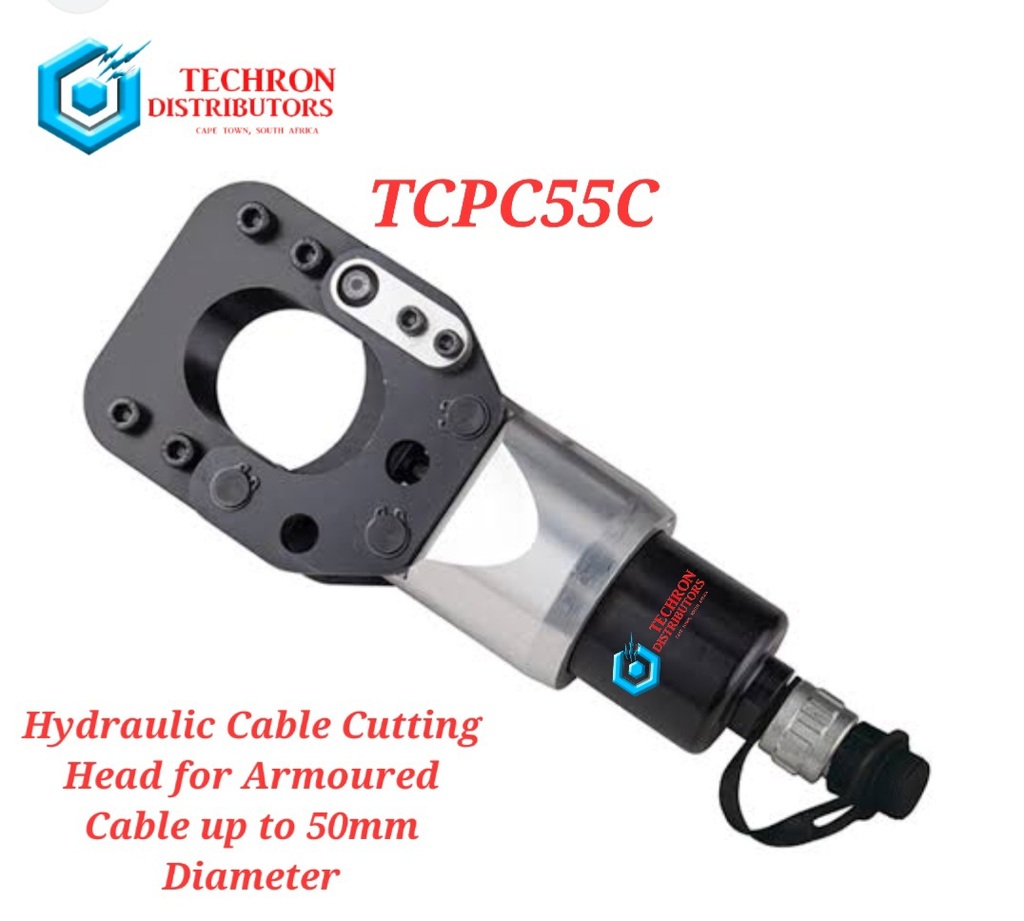

TCPC55C Hydraulic Cable Cutting Head.
Exerting 12 Tons of Pressure at 700 Bar , 10000 psi.
Cable cutting sizes 16mm2 to 400mm2 with diameters of single core 50mm maximum.
They are suitable for cutting armored cables with wire armoring up to 3mm and 120mm2 single core.
They can easily be utilized in tight spaces like trenches switch panels , etc.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time.
The cutting heads are latchable type for easy inline cable cutting.
The cutting head is operated by means of hydraulic foot pumps , battery pumps and electric hydraulic pumps
( Our range of pumps can be found displayed in our product offering herein).

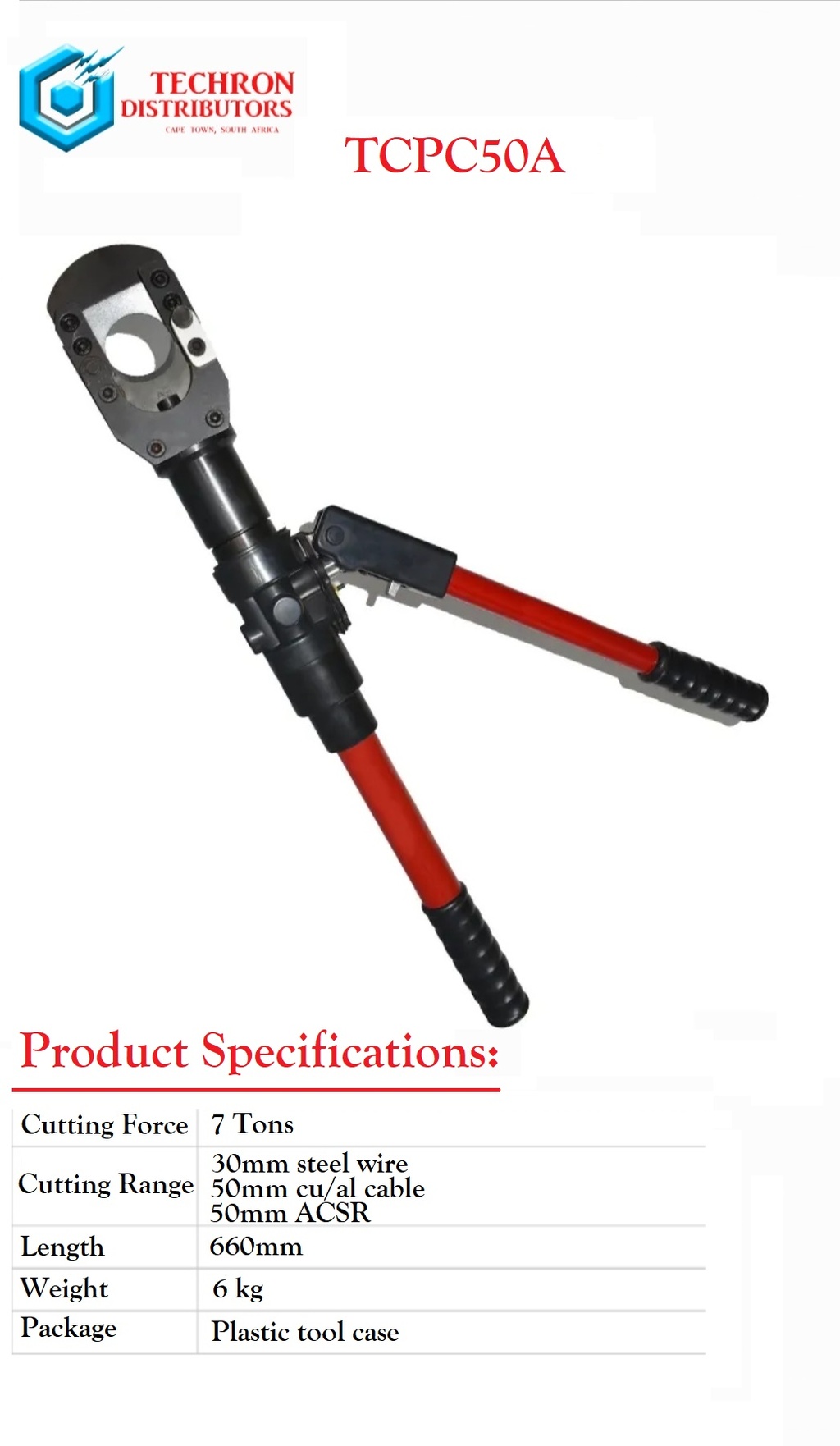

TCPC50A Hydraulic Self Contained Cable Cutting Tool. Exerting 7 Tons of Pressure at 700 Bar , 10000 psi cutting range diameters of 50mm maximum and SWA Cable with 3mm soft armouring up to 120mm2.
This cutting tool is equipped with a by-pass valve that shuts off after full pressure is reached.
This tool utilizes high profiled machined steel tempered and sharpened cutting blades ensuring clean cuts each time.

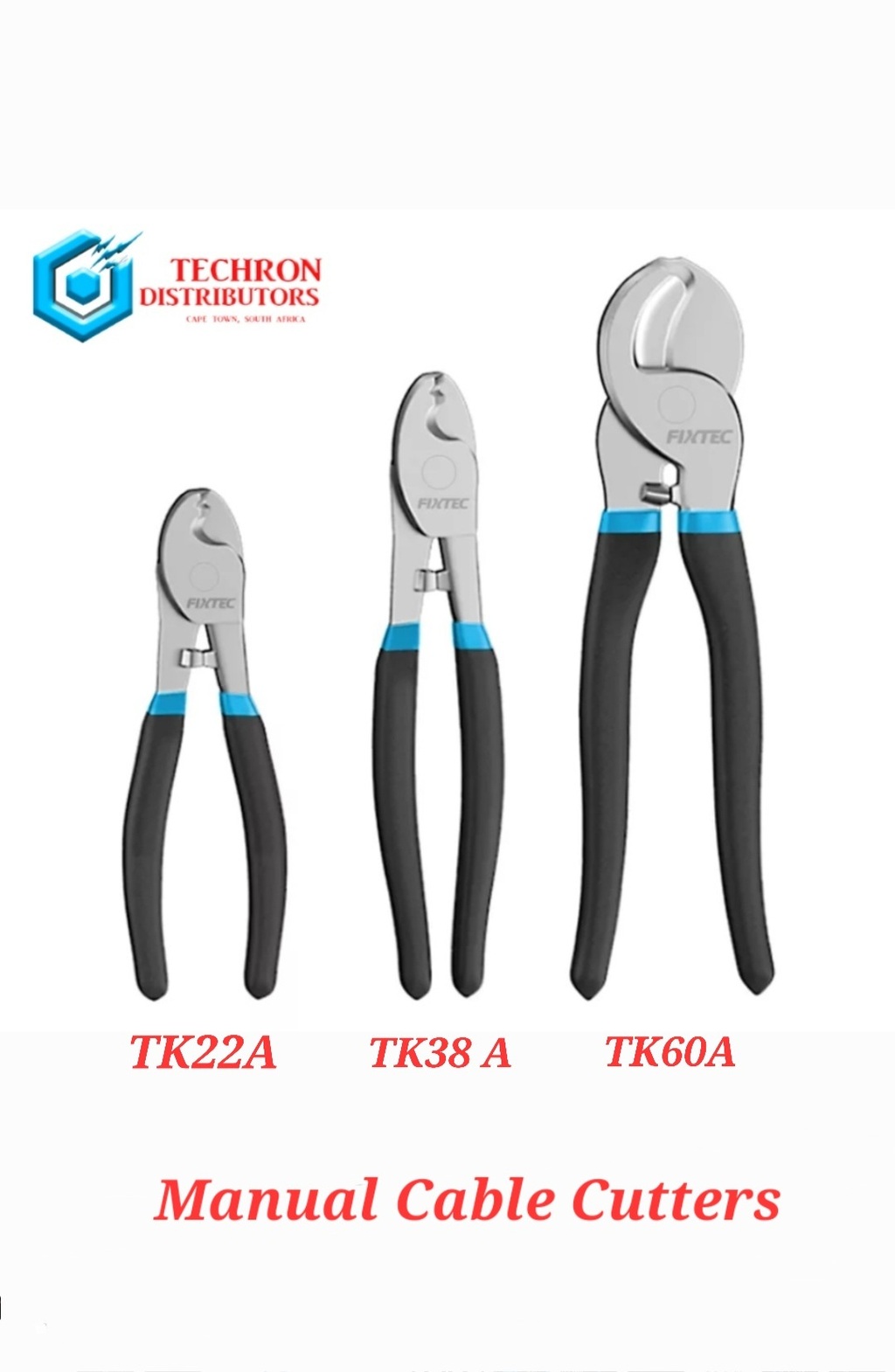

Manual Cable Cutters
With non slip grips suitable for cutting copper and aluminium cable cores.
Cut Range: TK22A = 25mm2
TK38A = 50mm2
TK60A = 95mm2

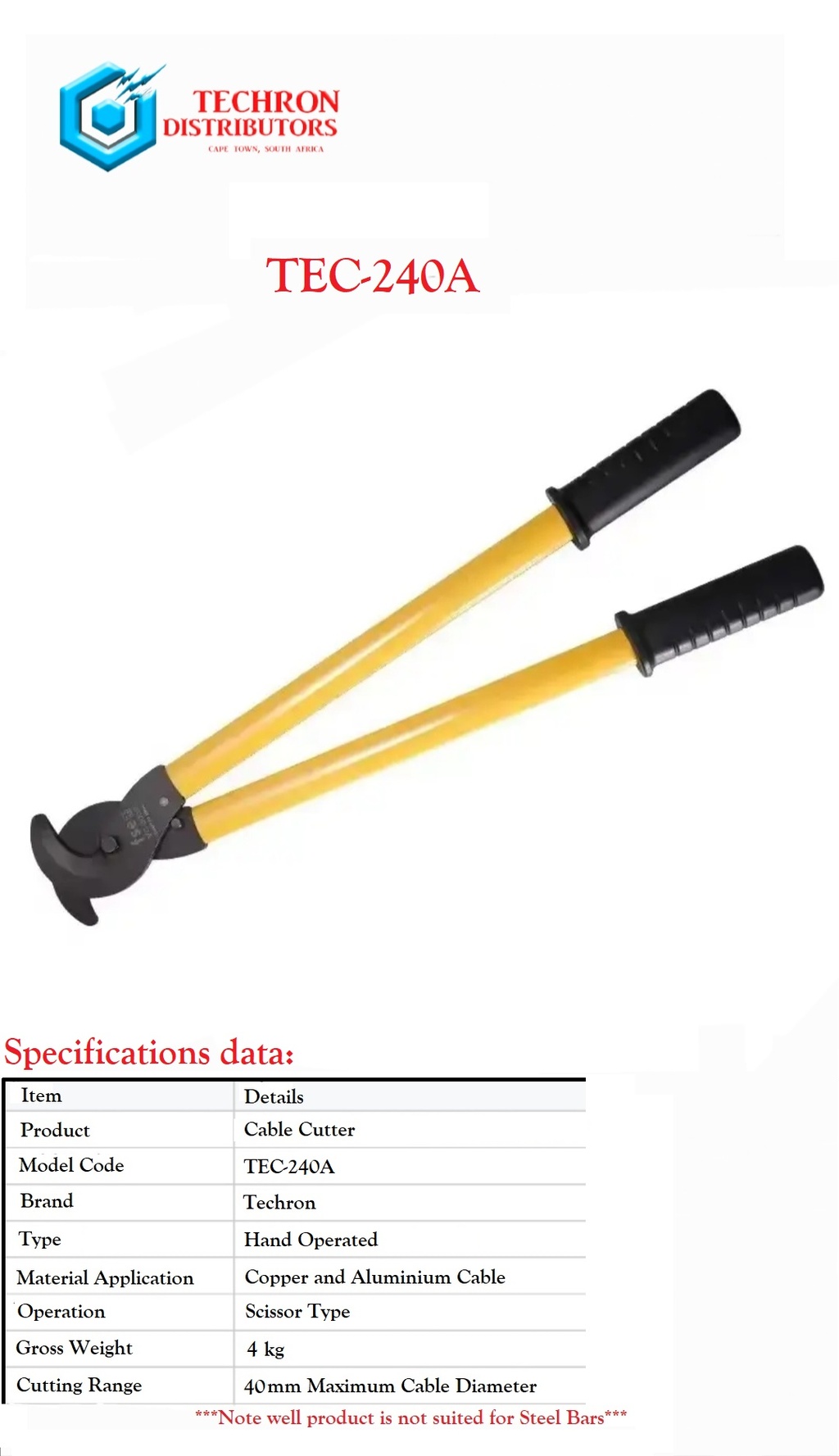

TEC-240A
Manual Cable Cutters
With non slip grips suitable for cutting copper and aluminium cable cores.
High Tensile Scissor Type Blades
Cutting Range: 40mm Single Core Non Armoured Cable
Dry Weight: 4 kg

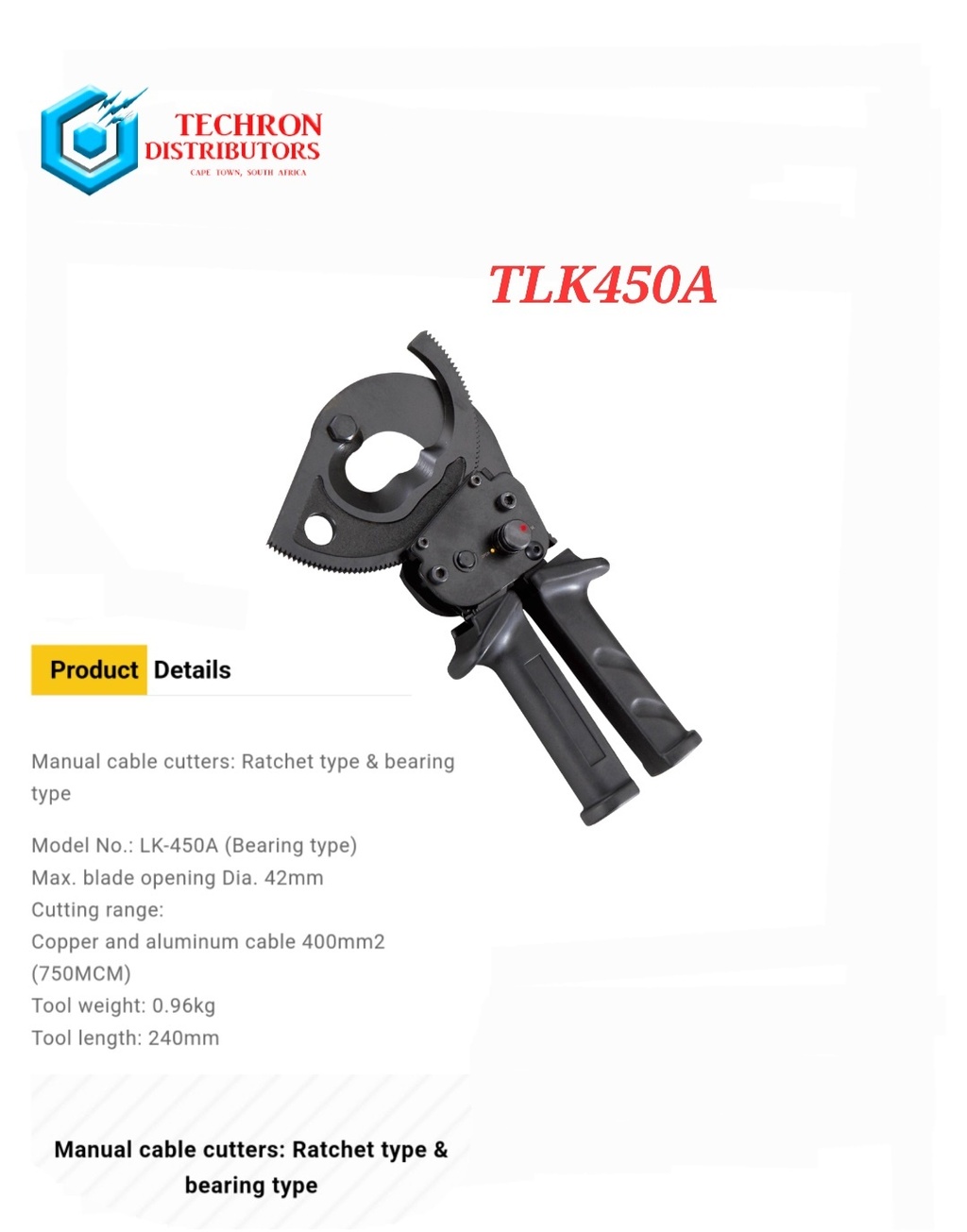

TLK450A Ratchet Type Hand Operated Cable Cutter.
Utilized in many applications where space is an issue example in switchboards.
The ratchet action allows the blades to be opened around the cable and then in small increments securely and evenly cut through the cable core without stress.
These are also available in battery hydraulic versions on request.
Maximum cutting range : 35mm
TCFP-800 Hydraulic Foot Pump
SPECIFICATIONS:
OUTPUT PRESSURE : 700Bar 10000Psi
ACCESSORIES : 2m Hose with 3/8 inch Female screw-on coupler.
Manual Pressure Release Wheel.
OIL: Shell Tellus Hydraulic oil.
Carrying Case : Durable Plastic Case.
APPLICATION : For driving hydraulic crimping heads , hydraulic cutting heads , hydraulic punching tools , hydraulic lift jacks , etc
TTP-700B ELECTRIC HYDRAULIC POWER PUMP.
SPECIFICATIONS :
POWER INPUT : 220 VOLTS AC
OUTPUT PRESSURE: 700 Bar 10000 Psi
OIL RATING: 2.5 liter Shell Tellus Hydraulic oil filled
ACCESSORIES: 2 meter high pressure neoprene rubber hose and 3/8 inch female screw on coupler , 1 x On-Off hand operated switch , 800 Bar analogue pressure gauge.
APPLICATIONS: Used in conjunction with Hydraulic Crimping and Cable Cutting Heads , Punch Tools , Jacks , etc
DRY WEIGHT: 12.7 KG
PACKAGE: WOODEN CRATE

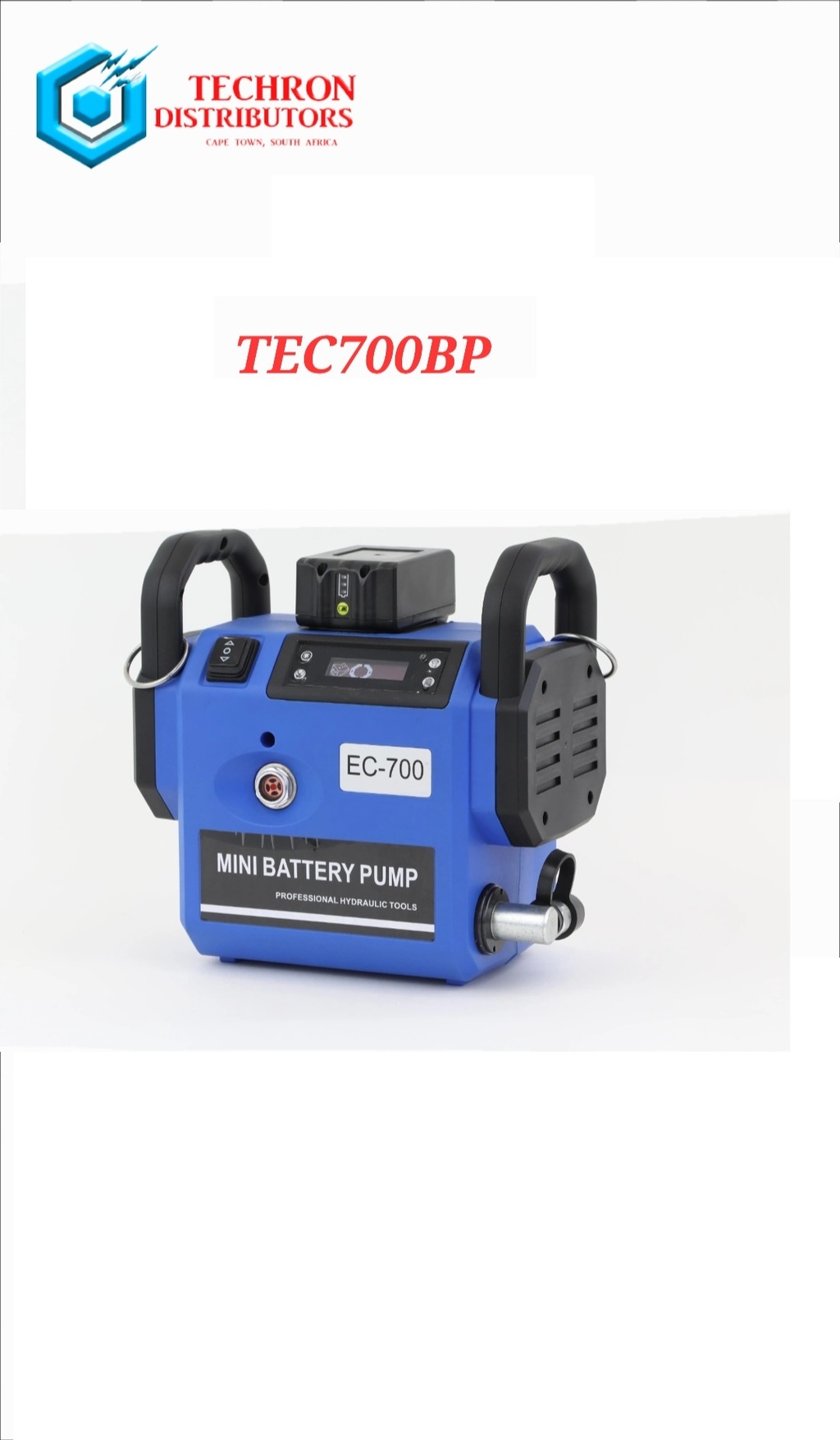

TEC-700BP ELECTRIC HYDRAULIC POWER PUMP.
SPECIFICATIONS :
POWER INPUT : 18 VOLT DC
OUTPUT PRESSURE: 700 Bar 10000 Psi
OIL RATING: 1.5 liter Shell Tellus Hydraulic oil filled
ACCESSORIES: 2 meter high pressure neoprene rubber hose and 3/8 inch female screw on coupler , 1 x On-Off hand operated switch , Built in digital 800 bar pressure and tool diagnostic gauge.
APPLICATIONS: Used in conjunction with Hydraulic Crimping and Cable Cutting Heads , Punch Tools , Jacks , etc
DRY WEIGHT: 10.7 KG
PACKAGE: WOODEN CRATE

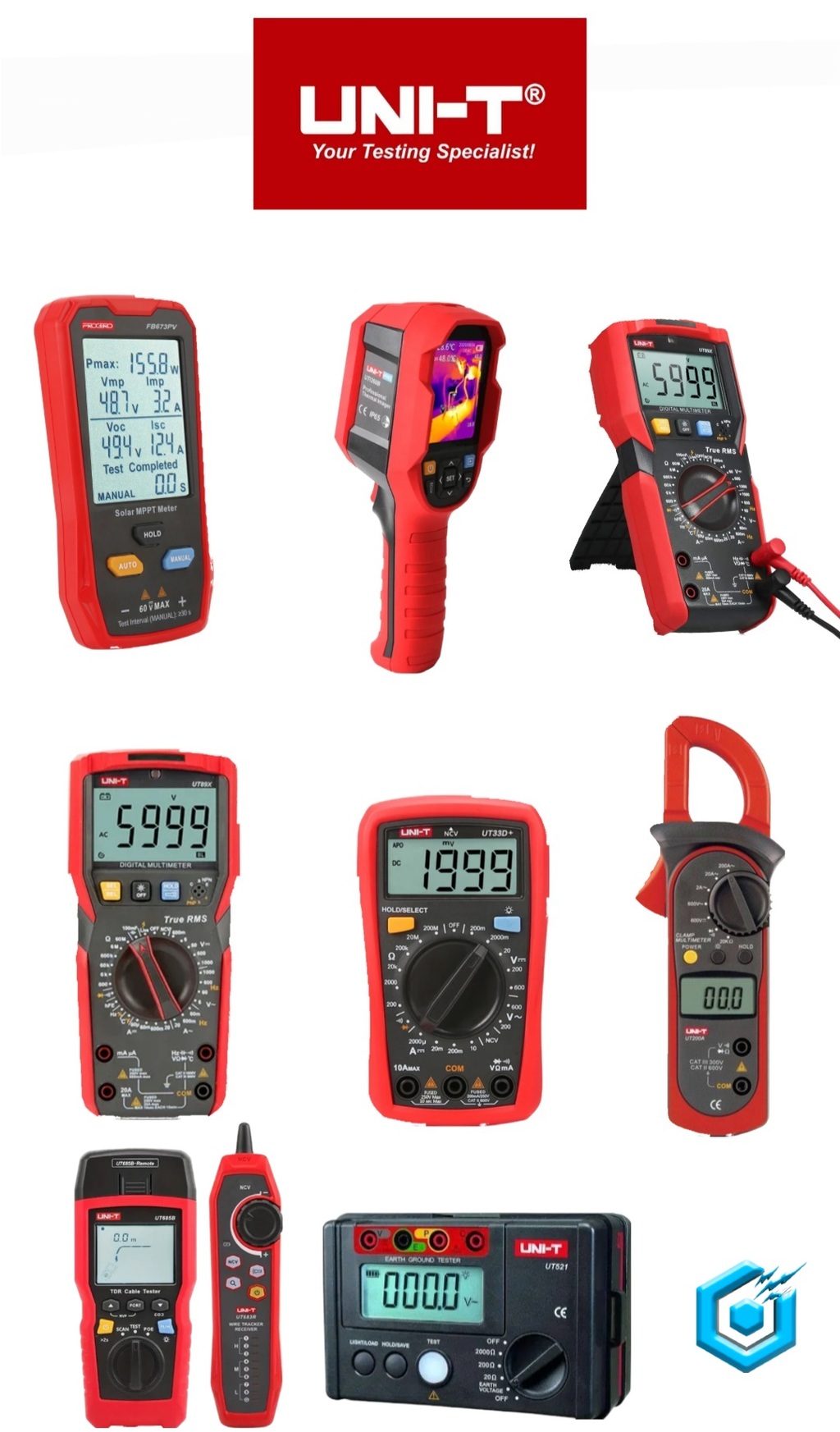

We stock and distribute a full range of UNI-T Instruments which meets all international approvals such as CE , ETL , UL , GS , etc
This brand of instrumentation been an international recognized brand for quality , durability and accuracy for decades.
UNI-T instrumentation is widely used and preferred in the following industries : Solar , Automotive , Electrical , Rail , Marine , Aerospace
We carry a full range of cost effective digital multimeters which do not compromise quality and offers the same durability of the more expensive range.
Used extensively in industries like electrical contracting , solar installations , marine , mining , aerospace , rail , industrial , etc
